Installation [11/2021 - ]: Procedure

  1. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
  2. INSTALL NO. 2 INSTRUMENT PANEL WIRE

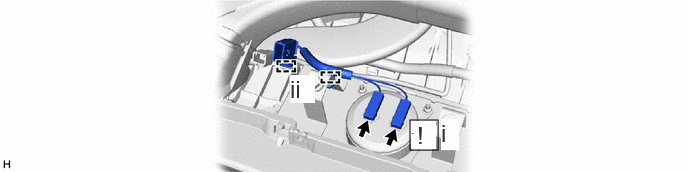

    1. GTY1053592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the 2 airbag connectors of the No. 2 instrument panel wire to the instrument panel passenger airbag assembly.
        NOTE:
        • When connecting any airbag connector, take care not to damage the airbag wire harness.
        • Be sure to only connect the connectors to each corresponding color.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector.

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [11/2021 - ]

      2. Engage the 2 clamps.
  3. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]
