Removal [11/2021 - ]: Procedure

  1. REMOVE BATTERY CHARGE PORT LID SUB-ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

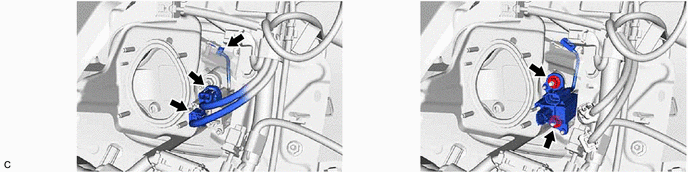

  2. REMOVE EV CHARGER LID INDICATOR ASSEMBLY
    1. GTY1079961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SPOT LIGHT WIRE
    1. GTY1079981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
