Removal [11/2021 - ]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    See step  1

  2. REMOVE FRONT BUMPER ASSEMBLY
    1. for Sport Package:

      Refer to REMOVAL [11/2021 - ]

    2. except Sport Package:

      Refer to REMOVAL [11/2021 - ]

  3. REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 45

  4. REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 50

  6. REMOVE HIGH PITCHED HORN ASSEMBLY

    Refer to PROCEDURE - Step 2

  7. REMOVE LOW PITCHED HORN ASSEMBLY

    Refer to PROCEDURE - Step 3

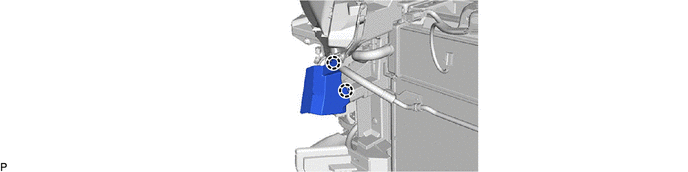

  8. REMOVE NO. 2 RADIATOR TO SUPPORT SEAL
    1. GTY1070104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

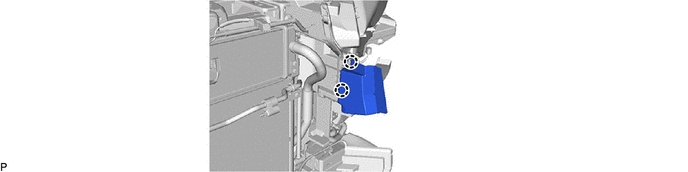

  9. REMOVE NO. 3 RADIATOR TO SUPPORT SEAL
    1. GTY1070101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

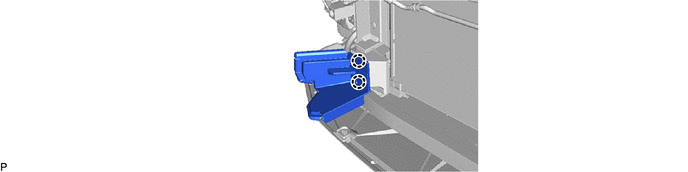

  10. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH
    1. GTY1070099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

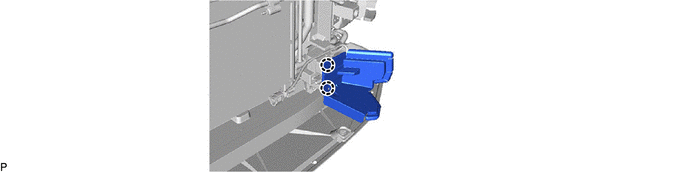

  11. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH
    1. GTY1070112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

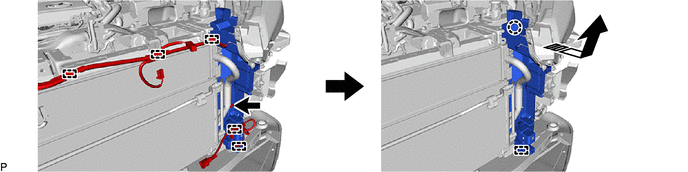

  12. REMOVE NO. 1 RADIATOR AIR GUIDE LH
    1. GTY1070470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

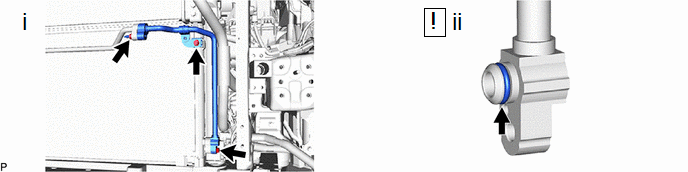

  13. REMOVE DISCHARGE TUBE SUB-ASSEMBLY
    1. GTY1070016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut, 2 bolts and discharge tube sub-assembly.
      2. Remove the O-ring from the discharge tube sub-assembly.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

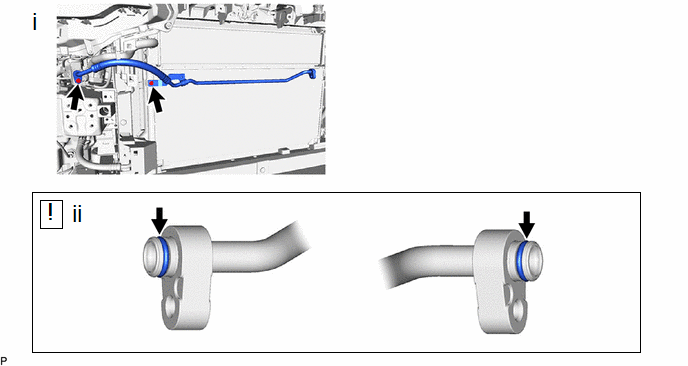

  14. REMOVE NO. 3 COOLER REFRIGERANT DISCHARGE HOSE
    1. GTY1071295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and No. 3 cooler refrigerant discharge hose.
      2. Remove the 2 O-rings from the No. 3 cooler refrigerant discharge hose.
        NOTE:

        Seal the openings of the disconnected parts with vinyl tape to prevent entry of moisture and foreign matter.

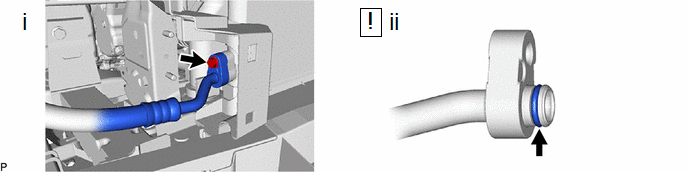

  15. DISCONNECT NO. 2 COOLER REFRIGERANT DISCHARGE HOSE
    1. GTY1070483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disconnect the No. 2 cooler refrigerant discharge hose.
      2. Remove the O-ring from the No. 2 cooler refrigerant discharge hose.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

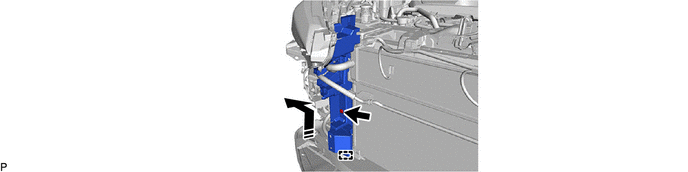

  16. DISCONNECT NO. 1 RADIATOR AIR GUIDE RH
    1. GTY1070505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disconnect in this Direction - -

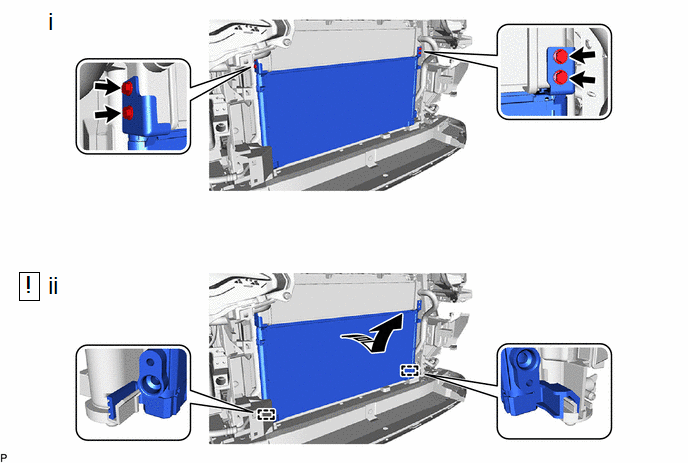

  17. REMOVE COOLER CONDENSER ASSEMBLY
    1. GTY1070189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the 4 bolts.
      2. Disengage the 2 guides and remove the cooler condenser assembly as shown in the illustration.
        NOTE:

        Do not damage the cooler condenser assembly and radiator assembly when removing the cooler condenser assembly.
