Removal [11/2021 - ]: Procedure

  1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    Refer to PROCEDURE - Step 20 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 20 [03/2024 - ]
  2. REMOVE NO. 2 POWER OUTLET SOCKET ASSEMBLY
    1. GTY1069329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the No. 2 power outlet socket assembly as shown in the illustration.
  3. REMOVE NO. 2 POWER OUTLET SOCKET COVER
    1. GTY1068748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE USB CHARGER SOCKET

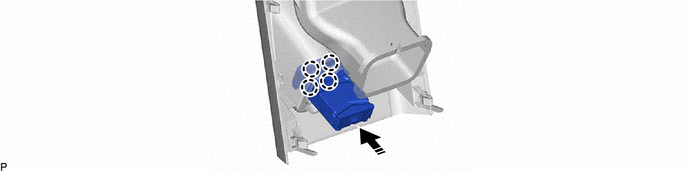

    1. GTY1071889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
