Removal [11/2021 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

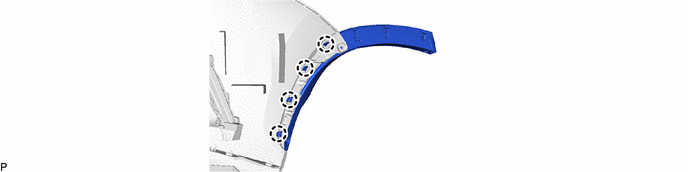

  2. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY
    1. GTY1057656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
