Removal [11/2021 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE REAR WHEEL HOUSE FRONT PLATE

    See step  1

  3. REMOVE QUARTER WHEEL OPENING MOULDING

    See step  3

  4. REMOVE NO. 1 BODY OUTSIDE MOULDING PAD

    See step  4

  5. REMOVE FENDER PANEL MUDGUARD SUB-ASSEMBLY

    See step  2

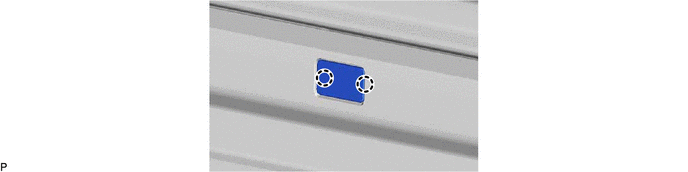

  6. REMOVE ROCKER PANEL MOULDING COVER
    1. GTY1053528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure as for the Front side and Rear side.

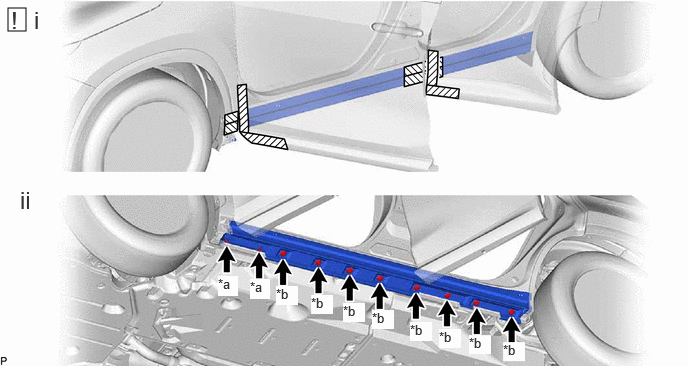

  7. REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY
    1. GTY1053949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A) *b Clip (B)
      1. Apply protective tape around the body rocker panel moulding assembly as shown in the illustration.
      2. Remove the 10 clips.

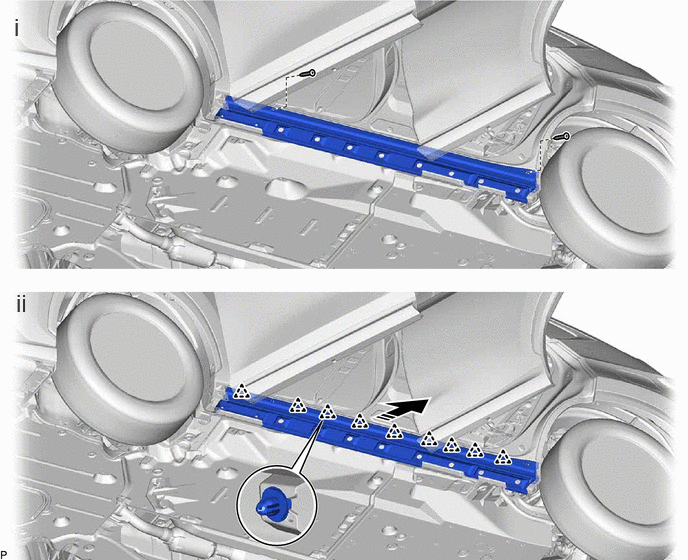

    2. GTY1053283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the 2 screws.
      2. Disengage the 9 clips to remove the body rocker panel moulding assembly as shown in the illustration.
