Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during body rocker panel moulding assembly removal/installation are shown below.
NOTE:
- To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
- After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lighting System (EXT) Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [11/2021 - ] Front Camera System Adaptive High Beam System - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link E-latch System - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2021 - ] Power Back Door System Reset back door close position Refer to INITIALIZATION [11/2021 - ] Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.

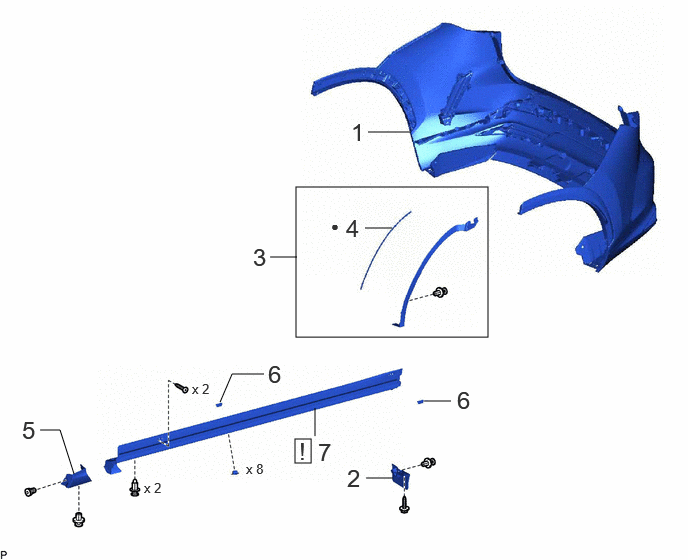

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR BUMPER ASSEMBLY | - | - | - | - |
| 2 | REAR WHEEL HOUSE FRONT PLATE | 65632D | - | - | - |
| 3 | QUARTER WHEEL OPENING MOULDING | 75874A | - | - | - |
| 4 | NO. 1 BODY OUTSIDE MOULDING PAD | 75696 | - | - | - |
| 5 | FENDER PANEL MUDGUARD SUB-ASSEMBLY | 76902B | - | - | - |
| 6 | ROCKER PANEL MOULDING COVER | 75857A | - | - | - |
| 7 | BODY ROCKER PANEL MOULDING ASSEMBLY | 75860A | See step 7 | - | - |
| • | Non-reusable part | - | - |
