Caution / Notice / Hint

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

COMPONENTS (DISASSEMBLY)

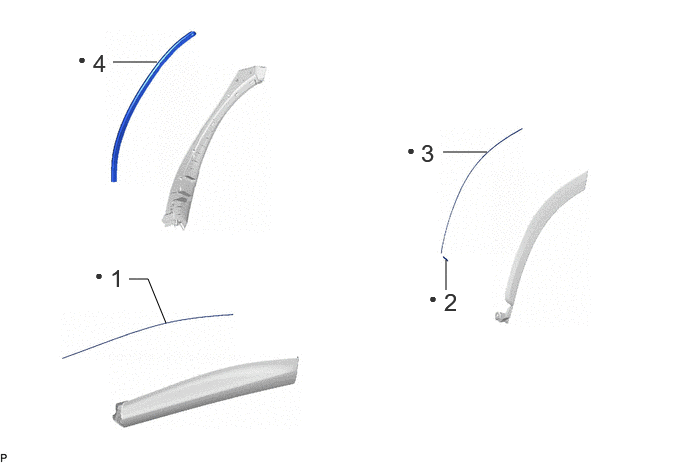

Fig 1: Rear Door Outside Moulding Disassembly Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	REAR DOOR OUTSIDE MOULDING UPPER PAD	75797	-	-	-
2	REAR DOOR OUTSIDE MOULDING REAR PAD	75798	-	-	-
3	NO. 1 REAR DOOR MOULDING PAD	75767A	-	-	-
4	REAR DOOR NO. 5 WEATHERSTRIP	67873L	-	-	-
