Removal [11/2021 - ]: Procedure

  1. REMOVE FRONT DOOR NO. 4 WEATHERSTRIP

    Refer to PROCEDURE - Step 45

  2. REMOVE HOLE PLUG

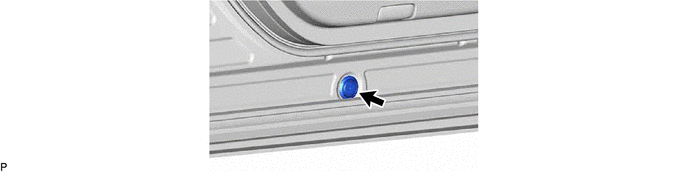

    1. GTY1053576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY

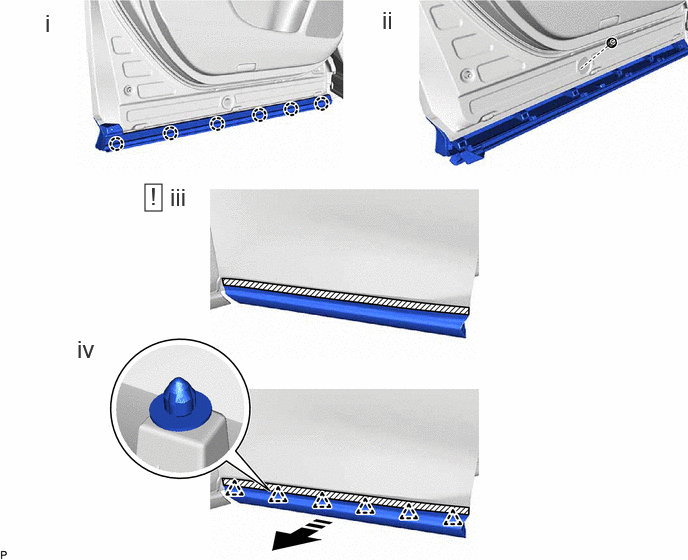

    1. GTY1052619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disengage the 6 claws.
      2. Remove the nut.
      3. Apply protective tape around the front door lower outside moulding sub-assembly as shown in the illustration.
      4. Disengage the 6 clips and separate the double-sided tape to remove the front door lower outside moulding sub-assembly.
