Removal [11/2021 - ]: Procedure

  1. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to DISASSEMBLY [11/2021 - ]

  2. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

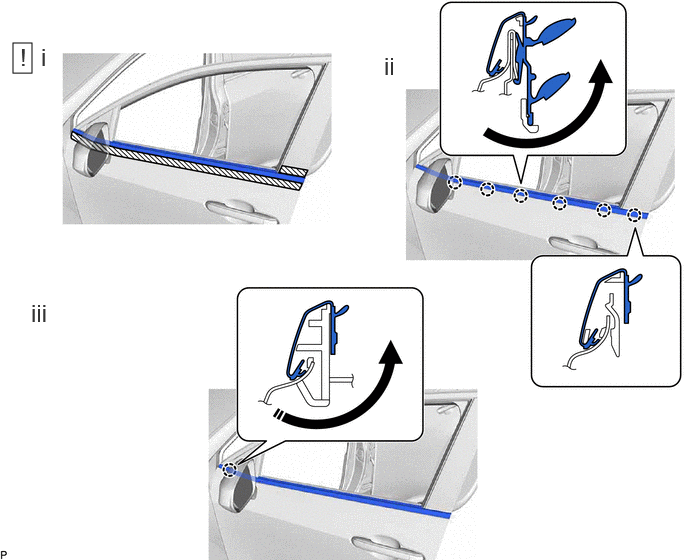

    1. GTY1053739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the front door belt moulding assembly LH as shown in the illustration.
      2. Disengage the 6 claws as shown in the illustration.
      3. Disengage the claw and remove the front door belt moulding assembly as shown in the illustration.
