Caution / Notice / Hint

COMPONENTS (DISASSEMBLY)

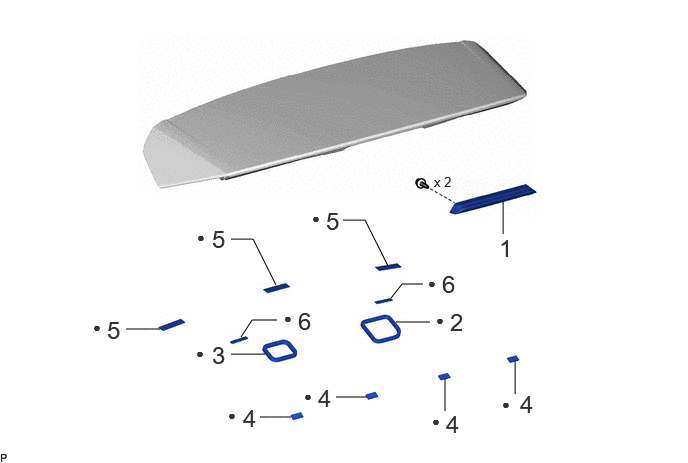

Fig 1: Rear Spoiler Disassembly Components
GTY1052720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 CENTER STOP LIGHT ASSEMBLY 81570 - - -
2 PACKING A - - - -
3 PACKING B - - - -
4 NO. 2 REAR SPOILER PROTECTOR 76873 - - -
5 NO. 1 REAR SPOILER PROTECTOR 76872 - - -
6 PROTECTOR - - - -
• Non-reusable part - -
