Caution / Notice / Hint

COMPONENTS (DISASSEMBLY)

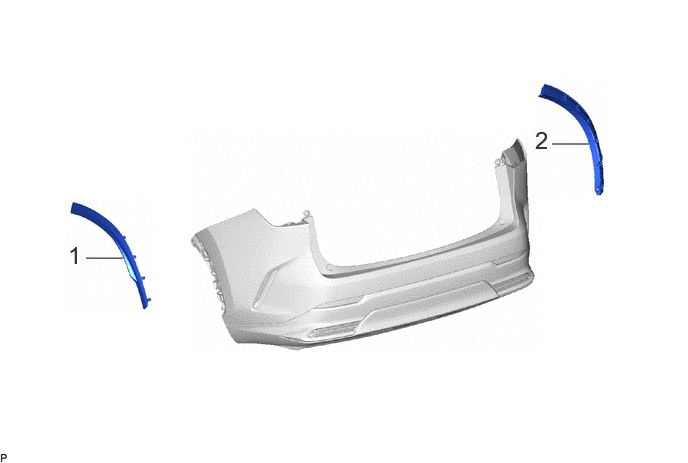

Fig 1: Rear Bumper Disassembly Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH	75606B	-	-	-
2	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH	75605B	-	-	-

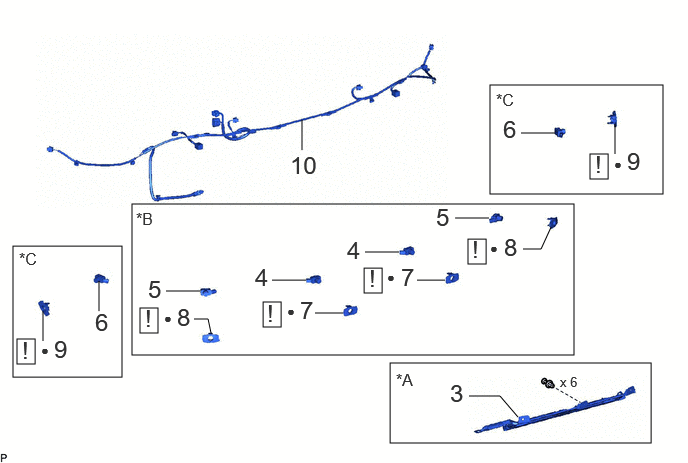

Fig 2: Rear Bumper Disassembly Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
3	KICK DOOR CONTROL SENSOR ASSEMBLY	891B0	-	-	-
4	REAR CENTER ULTRASONIC SENSOR	89342A	-	-	-
5	REAR CORNER ULTRASONIC SENSOR	89342	-	-	-
6	REAR SIDE ULTRASONIC SENSOR	89342B	-	-	-
7	REAR CENTER ULTRASONIC SENSOR RETAINER	89C48B	See step 7	-	-
8	REAR CORNER ULTRASONIC SENSOR RETAINER	89C48A	See step 8	-	-
9	REAR SIDE ULTRASONIC SENSOR RETAINER	89C48C	See step 9	-	-
10	NO. 2 LUGGAGE ROOM WIRE	82182	-	-	-

*A	w/ Kick Sensor	*B	w/ Intuitive Parking Assist System
*C	w/ Advanced Park	-	-
•	Non-reusable part	-	-

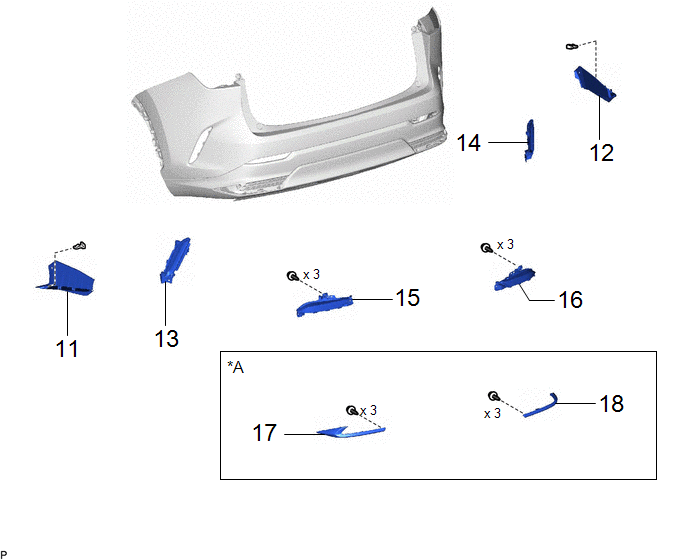

Fig 3: Rear Bumper Disassembly Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
11	REAR BUMPER LOWER SIDE RETAINER LH	52568C	-	-	-
12	REAR BUMPER LOWER SIDE RETAINER RH	52567C	-	-	-
13	REAR BUMPER EXTENSION LH	52153B	-	-	-
14	REAR BUMPER EXTENSION RH	52152B	-	-	-
15	REFLEX REFLECTOR ASSEMBLY LH	81490E	-	-	-
16	REFLEX REFLECTOR ASSEMBLY RH	81480D	-	-	-
17	REAR BUMPER LOWER RETAINER LH	52566C	-	-	-
18	REAR BUMPER LOWER RETAINER RH	52565D	-	-	-

except Sport Package

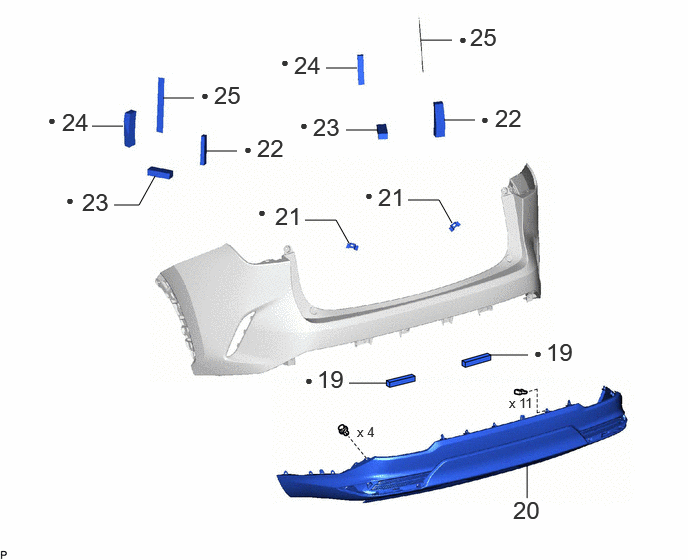

Fig 4: Rear Bumper Disassembly Components (4 Of 5)

•

Non-reusable part

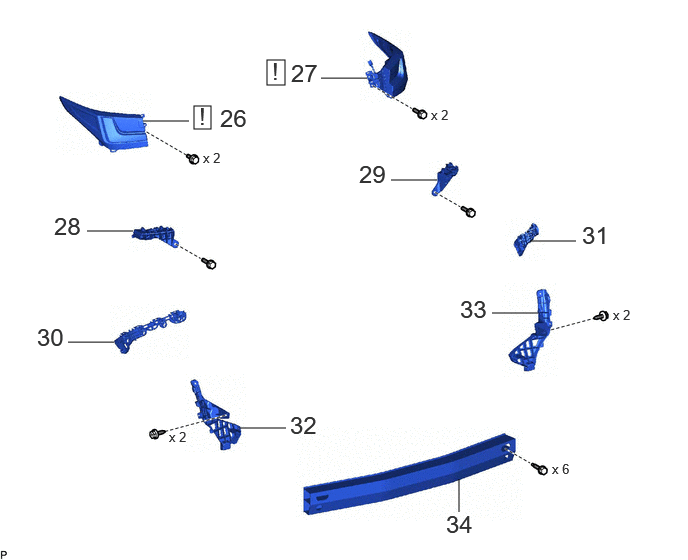

Fig 5: Rear Bumper Disassembly Components (5 Of 5)

Procedure		Part Name Code
26	REAR COMBINATION LIGHT SUB-ASSEMBLY LH	-	See step 26	-	-
27	REAR COMBINATION LIGHT SUB-ASSEMBLY RH	-	See step 27	-	-
28	REAR BUMPER UPPER RETAINER LH	52563D	-	-	-
29	REAR BUMPER UPPER RETAINER RH	52562E	-	-	-
30	REAR BUMPER SIDE SUPPORT LH	52156A	-	-	-
31	REAR BUMPER SIDE SUPPORT RH	52155A	-	-	-
32	REAR BUMPER SIDE SEAL LH	52592	-	-	-
33	REAR BUMPER SIDE SEAL RH	52591	-	-	-
34	REAR BUMPER REINFORCEMENT	52171C	-	-	-
