The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front bumper removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Front bumper assembly1 Radiator grille1	Front television camera view adjustment	Advanced Park	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
Front bumper assembly1 Radiator grille1	Front television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille sub-assembly or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
Front television camera assembly*1	Front television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
Front television camera assembly*1	Front television camera view adjustment	Advanced Park	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]

*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

HINT:

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.
- for Target Adjustment (Triangle Target):
  Refer to TARGET ADJUSTMENT (TRIANGLE TARGET) [11/2021 - ]
- for Target Adjustment (Flat Surface Target):
  Refer to TARGET ADJUSTMENT (FLAT SURFACE TARGET) [11/2021 - ]
- for Driving Adjustment:
  Refer to DRIVING ADJUSTMENT [11/2021 - ]
When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.
- w/ Parking Support Brake System:
  Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
- w/ Advanced Park:
  Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
If the bumper is damaged, there is a possibility that the installation area of the front side radar sensor may be deformed and the front side radar sensor system may not operate correctly, so visually inspect the front side radar sensor installation area (headlight, frame, bracket, stud bolt) to make sure it is not dented or bent.
Refer to ADJUSTMENT [11/2021 - ]
If the visual inspection finds a problem, check the installation condition of the front side radar sensor, and adjust the installation position of the front side radar sensor as necessary.

COMPONENTS (REMOVAL)

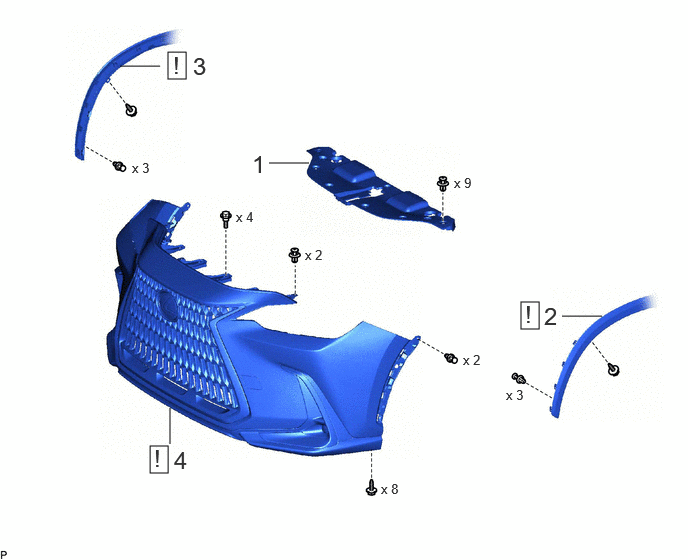

Fig 1: Front Bumper (Except Sport Package) Removal Components

Procedure		Part Name Code
1	RADIATOR UPPER AIR GUIDE PLATE	16681A	-	-	-
2	FRONT FENDER MOULDING SUB-ASSEMBLY LH	75602A	See step 2	-	-
3	FRONT FENDER MOULDING SUB-ASSEMBLY RH	75601A	See step 3	-	-
4	FRONT BUMPER ASSEMBLY	-	See step 4	-	-
