Removal [11/2021 - ]: Procedure

  1. REMOVE SWITCH BASE
    See step  7

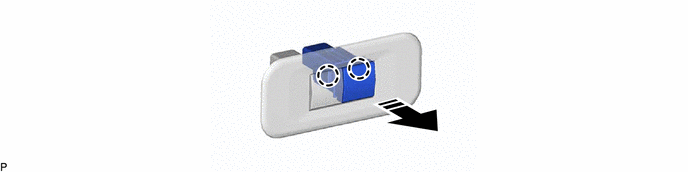

  2. REMOVE BACK DOOR CONTROL SWITCH
    1. GTY1052657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
