Caution / Notice / Hint

COMPONENTS (REMOVAL)

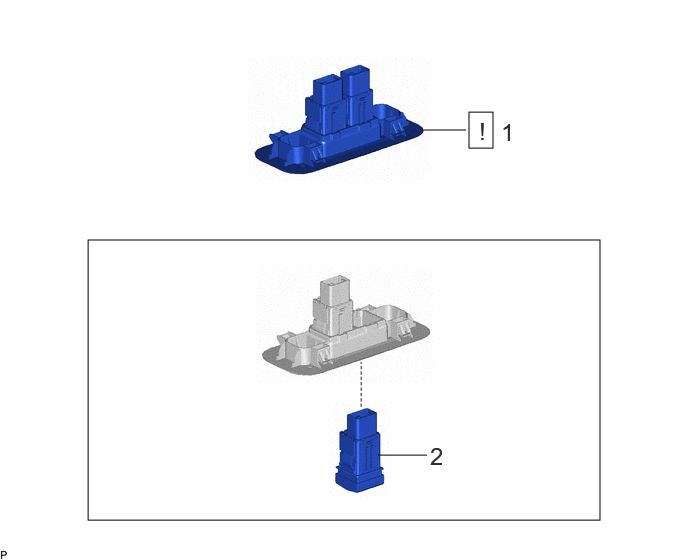

Fig 1: Reserve Lock Switch Removal Components
GTY1053147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 SWITCH BASE 84941A See step  1 - -
2 BACK DOOR CONTROL SWITCH 84931C - - -
