Removal [11/2021 - ]: Procedure

  1. REMOVE BACK DOOR UPPER TRIM COVER

    See step  1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    See step  2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure for the LH side.
  4. REMOVE BACK DOOR LOCK COVER
    See step  5
  5. REMOVE BACK DOOR INSIDE HANDLE
    See step  6
  6. REMOVE SWITCH BASE
    See step  7
  7. REMOVE BACK DOOR SERVICE HOLE COVER

    See step  8

  8. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    See step  9

  9. REMOVE POWER BACK DOOR SENSOR ASSEMBLY

    See step  9

  10. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY

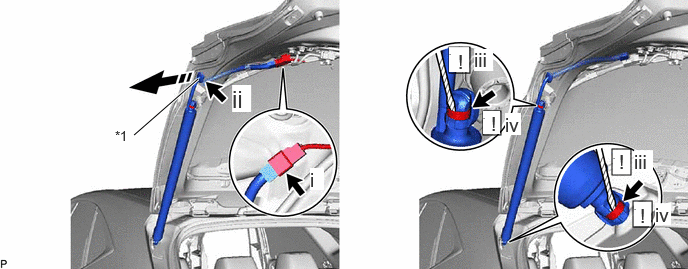

    1. GTY1052736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Grommet - -
      Remove in this Direction - -
      1. Disconnect the connector.
      2. Disengage the grommet as shown in the illustration.
      3. Using a screwdriver with its tip wrapped with protective tape, slightly raise the 2 stop rings as shown in the illustration.
      4. Disengage the 2 ball joints to remove the power back door unit set assembly.
        NOTE:
        • Remove the power back door unit set assembly while supporting the back door by hand.
        • Make sure to replace the power back door unit set assembly with a new one.
  11. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET

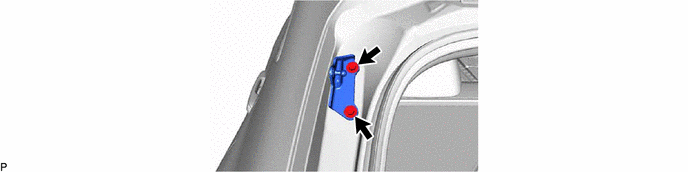

    1. GTY1053895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET

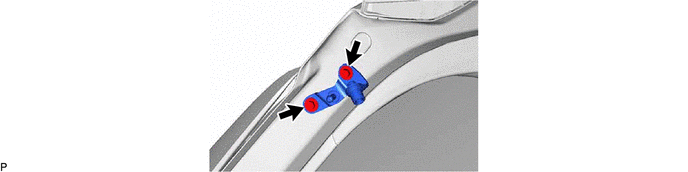

    1. GTY1053112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE BACK DOOR STAY STOPPER
    1. GTY1054579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
