Removal [11/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
  2. REMOVE BATTERY SERVICE COVER PLATE

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [11/2021 - ]

  4. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

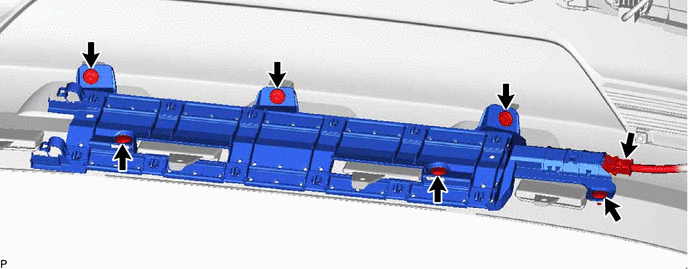

  5. REMOVE KICK DOOR CONTROL SENSOR ASSEMBLY
    1. GTY1053983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
