COMPONENTS (REMOVAL)

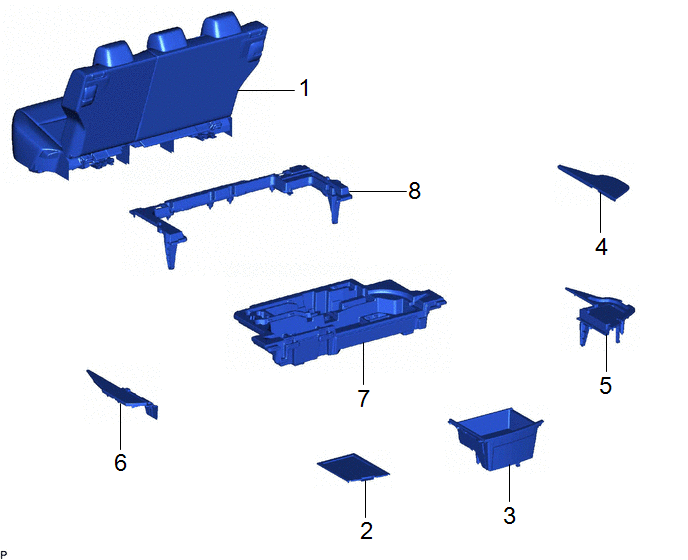

Fig 1: Fuel Lid Opener Motor Assembly Removal Components (1 Of 2)

GTY1073096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	REAR SEAT ASSEMBLY	-	-	-	-
2	BATTERY SERVICE COVER PLATE	58491E	-	-	-
3	REAR DECK FLOOR BOX	64993	-	-	-
4	REAR FLOOR BOARD REAR RH	58417B	-	-	-
5	JUNCTION BLOCK SERVICE COVER	58461H	-	-	-
6	REAR FLOOR BOARD REAR LH	58418H	-	-	-
7	FRONT DECK FLOOR BOX	64991	-	-	-
8	DECK BOARD SET SUPPORT	58393E	-	-	-

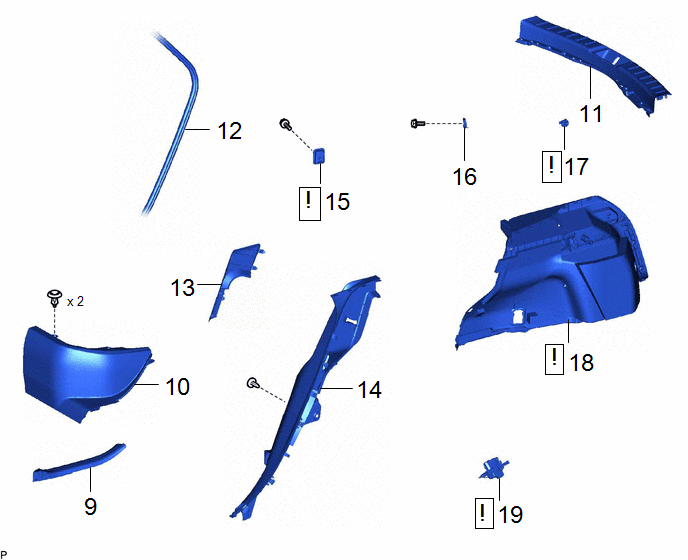

Fig 2: Fuel Lid Opener Motor Assembly Removal Components (2 Of 2)

GTY1057063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
9	REAR DOOR SCUFF PLATE LH	67918A	-	-	-
10	NO. 3 BATTERY SERVICE COVER BOARD	58467J	-	-	-
11	REAR FLOOR FINISH PLATE	58387B	-	-	-
12	REAR DOOR OPENING TRIM WEATHERSTRIP LH	62332A	-	-	-
13	NO. 1 SIDE TRIM BASE COVER LH	62525D	-	-	-
14	REAR SEAT SIDE GARNISH LH	62552F	-	-	-
15	ROPE HOOK ASSEMBLY	66310H	See step 15	-	-
16	LUGGAGE HOLD BELT STRIKER ASSEMBLY	58460D	-	-	-
17	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	64725F	See step 17	-	-
18	DECK TRIM SIDE PANEL ASSEMBLY LH	64740C	See step 18	-	-
19	FUEL LID LOCK WITH MOTOR ASSEMBLY	77030A	See step 19	-	-
