Inspection [11/2021 - ]: Procedure

  1. INSPECT EV CHARGER LID INDICATOR ASSEMBLY
    1. Remove the EV charger lid indicator assembly.

      Refer to REMOVAL [11/2021 - ]

    2. Check the resistance.

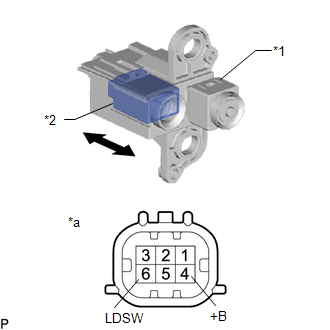

      GTY1054166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 EV charger lid indicator assembly
      *2 Holder
      *a Component without harness connected
      (EV Charger Lid Indicator Assembly)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        4(+B) - 6 (LDSW) Holder not pushed 10 kΩ or higher
        4(+B) - 6 (LDSW) Holder pushed and held Below 1 Ω

        If the result is not as specified, replace the EV charger lid indicator assembly.

    3. Install the EV charger lid indicator assembly.

      Refer to INSTALLATION [11/2021 - ]
