COMPONENTS (REASSEMBLY)

Fig 1: Back Door Reassembly Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	NO. 1 AMPLIFIER ANTENNA ASSEMBLY	86300B	-	-	-
2	NO. 5 ANTENNA CORD SUB-ASSEMBLY	86101R	See step 2	-	-

N.m (kgf/cm, ft.lbf): Specified torque

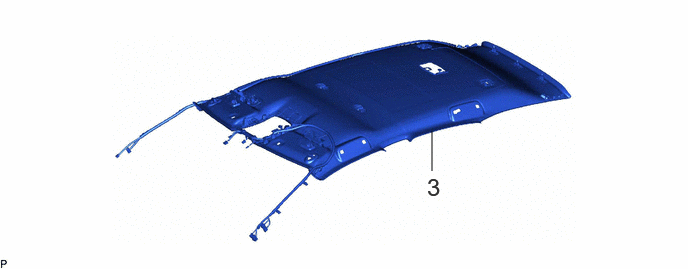

Fig 2: Back Door Reassembly Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
3	ROOF HEADLINING ASSEMBLY	-	-	-	-

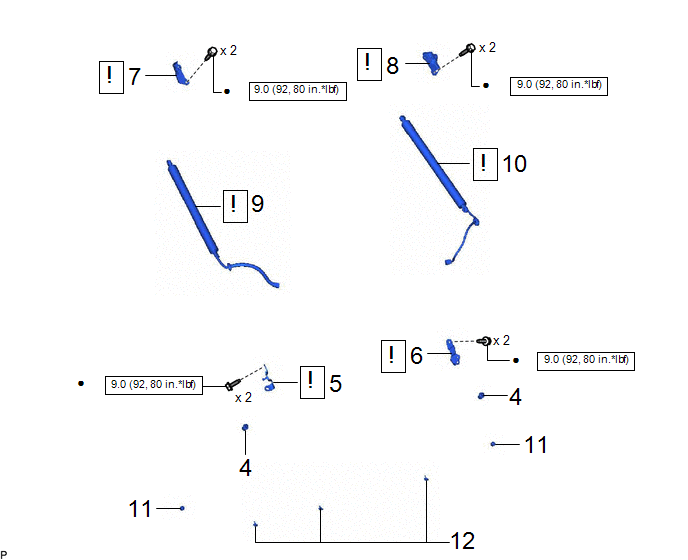

Fig 3: Back Door Reassembly Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
4	BACK DOOR STAY STOPPER	68984	-	-	-
5	BACK DOOR DAMPER STAY LOWER BRACKET LH	68948	See step 5	-	-
6	BACK DOOR DAMPER STAY LOWER BRACKET RH	68947	See step 6	-	-
7	BACK DOOR DAMPER STAY UPPER BRACKET LH	68946	See step 7	-	-
8	BACK DOOR DAMPER STAY UPPER BRACKET RH	68945	See step 8	-	-
9	POWER BACK DOOR UNIT SET ASSEMBLY LH	68920	See step 9	-	-
10	POWER BACK DOOR UNIT SET ASSEMBLY RH	68910A	See step 10	-	-
11	BACK DOOR PANEL CUSHION	67005B	-	-	-
12	BACK DOOR DUST PROOF SEAL	67837N	-	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-

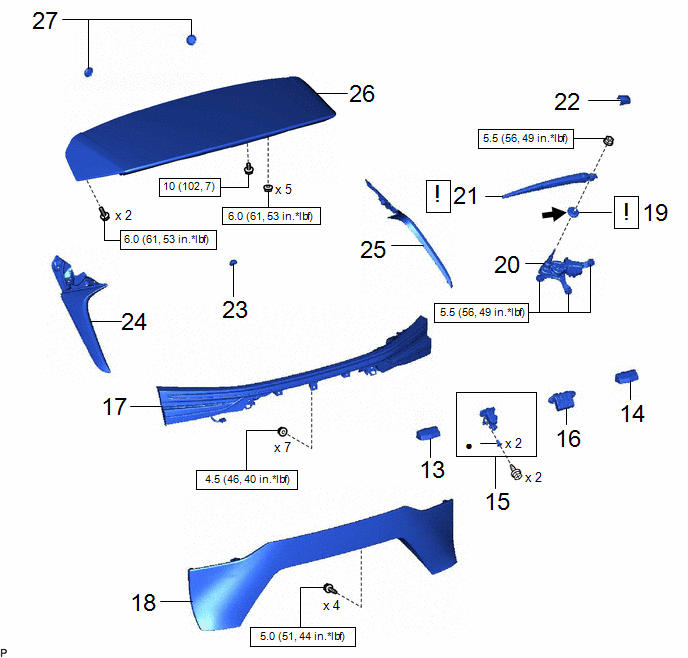

Fig 4: Back Door Reassembly Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
13	LICENSE PLATE LIGHT ASSEMBLY LH	81690A	-	-	-
14	LICENSE PLATE LIGHT ASSEMBLY RH	81270D	-	-	-
15	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-
16	BACK DOOR OPENER SWITCH ASSEMBLY	84840G	-	-	-
17	REAR LIGHT ASSEMBLY	81580A	-	-	-
18	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY	-	-	-	-
19	REAR WIPER MOTOR GROMMET	85143R	See step 19	-	-
20	REAR WIPER MOTOR ASSEMBLY	85110R	-	-	-
21	REAR WIPER ARM AND BLADE ASSEMBLY	-	See step 21	-	-
22	REAR WIPER ARM HEAD CAP	85292A	-	-	-
23	REAR WASHER NOZZLE	85345R	-	-	-
24	REAR SIDE SPOILER SUB-ASSEMBLY LH	76088B	-	-	-
25	REAR SIDE SPOILER SUB-ASSEMBLY RH	76087B	-	-	-
26	REAR SPOILER ASSEMBLY	-	-	-	-
27	HOLE PLUG	-	-	-	-

	N.m (kgf/cm, ft.lbf): Specified torque		MP grease
•	Non-reusable part	-	-

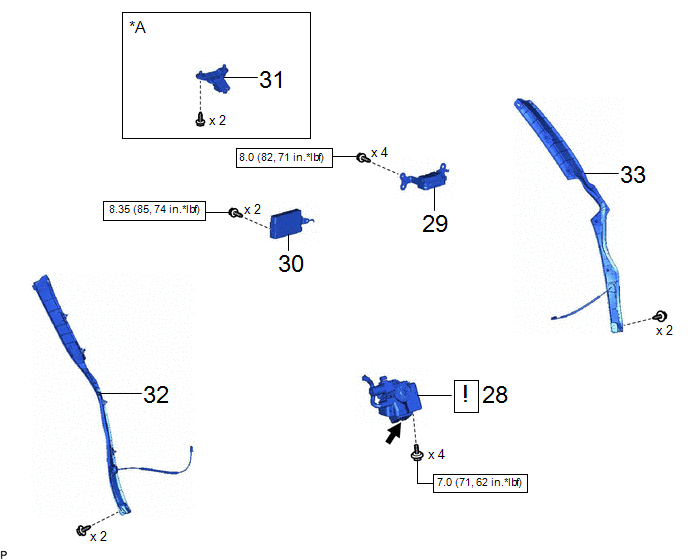

Fig 5: Back Door Reassembly Components With Torque Specifications (5 Of 6)

Callout - Procedure		Part Name Code
28	BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH	69350P	See step 28	-	-
29	BACK DOOR WEIGHT	67372A	-	-	-
30	MULTIPLEX NETWORK DOOR ECU	89222A	-	-	-
31	INNER MIRROR CAMERA ASSEMBLY	867C0	-	-	-
32	POWER BACK DOOR SENSOR ASSEMBLY LH	84280D	-	-	-
33	POWER BACK DOOR SENSOR ASSEMBLY RH	84270G	-	-	-

*A	w/ Digital Inner Mirror	-	-
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease

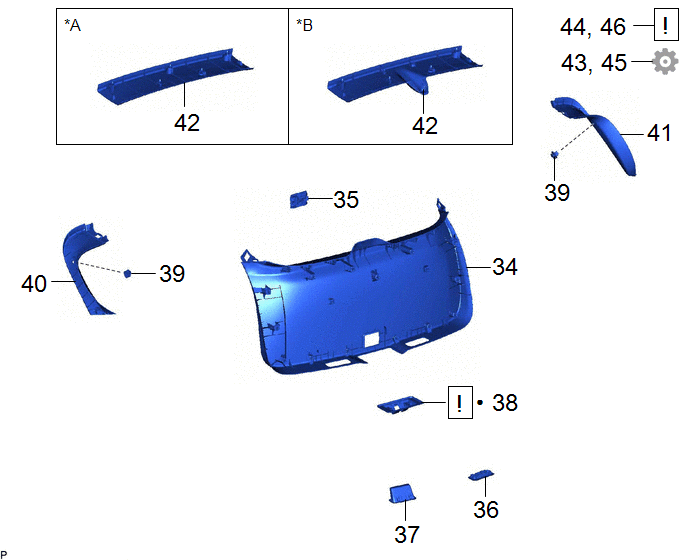

Fig 6: Back Door Reassembly Components (6 Of 6)

Procedure		Part Name Code
34	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-
35	BACK DOOR SERVICE HOLE COVER	67847A	-	-	-
36	SWITCH BASE	84941A	-	-	-
37	BACK DOOR INSIDE HANDLE	69212C	-	-	-
38	BACK DOOR LOCK COVER	69321	See step 38	-	-
39	ROPE HOOK	66311M	-	-	-
40	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
41	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
42	BACK DOOR UPPER TRIM COVER	67765B	-	-	-
43	INITIALIZE POWER BACK DOOR SYSTEM	-	-	-	See step 43
44	INSPECT POWER BACK DOOR SYSTEM	-	See step 44	-	-
45	PERFORM CALIBRATION	-	-	-	See step 45
46	ADJUST BACK DOOR	-	See step 46	-	-

*A	w/o Digital Inner Mirror	*B	w/ Digital Inner Mirror
•	Non-reusable part	-	-
