The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during back door disassembly/reassembly are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Rear television camera assembly*	Parking assist monitor system initialization Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [11/2021 - ]
	Rear television camera view adjustment	Advanced Park (w/ Advanced Park)	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
	Rear television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
Multiplex network door ECU Power back door unit assembly set LH* Power back door unit assembly set RH*	Reset back door close position	Power Back Door System	Refer to INITIALIZATION [11/2021 - ]

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

COMPONENTS (DISASSEMBLY)

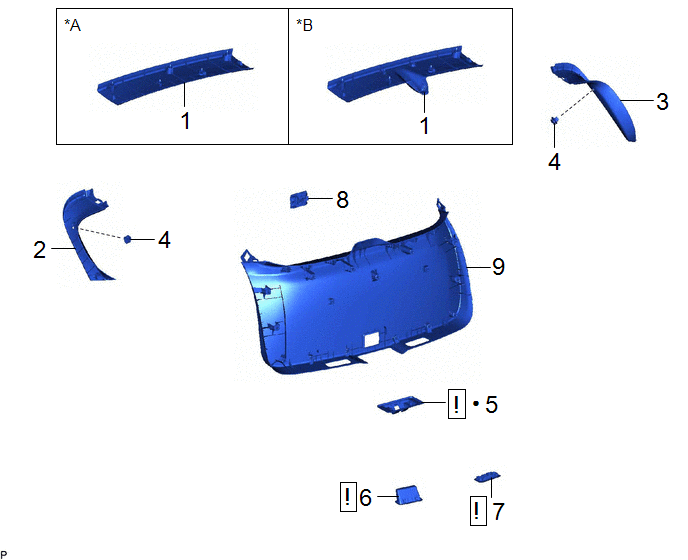

Fig 1: Back Door Disassembly Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BACK DOOR UPPER TRIM COVER	67765B	-	-	-
2	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	ROPE HOOK	66311M	-	-	-
5	BACK DOOR LOCK COVER	69321	See step 5	-	-
6	BACK DOOR INSIDE HANDLE	69212C	See step 6	-	-
7	SWITCH BASE	84941A	See step 7	-	-
8	BACK DOOR SERVICE HOLE COVER	67847A	-	-	-
9	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-

*A	w/o Digital Inner Mirror	*B	w/ Digital Inner Mirror
•	Non-reusable part	-	-

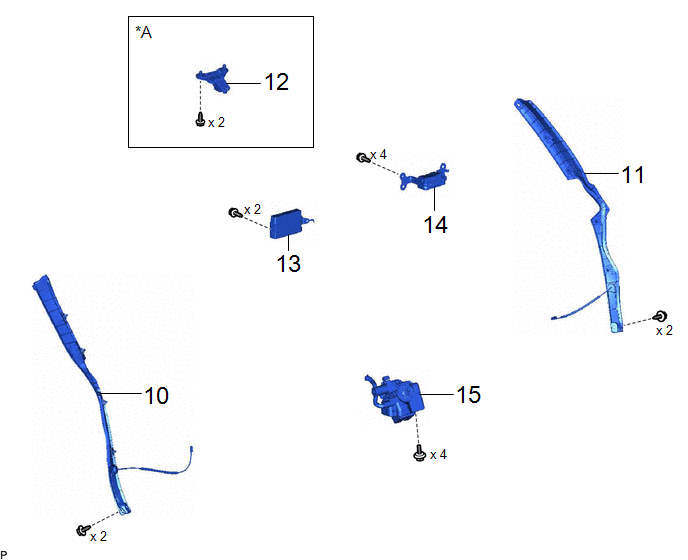

Fig 2: Back Door Disassembly Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
10	POWER BACK DOOR SENSOR ASSEMBLY LH	84280D	-	-	-
11	POWER BACK DOOR SENSOR ASSEMBLY RH	84270G	-	-	-
12	INNER MIRROR CAMERA ASSEMBLY	867C0	-	-	-
13	MULTIPLEX NETWORK DOOR ECU	89222A	-	-	-
14	BACK DOOR WEIGHT	67372A	-	-	-
15	BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH	69350P	-	-	-

w/ Digital Inner Mirror

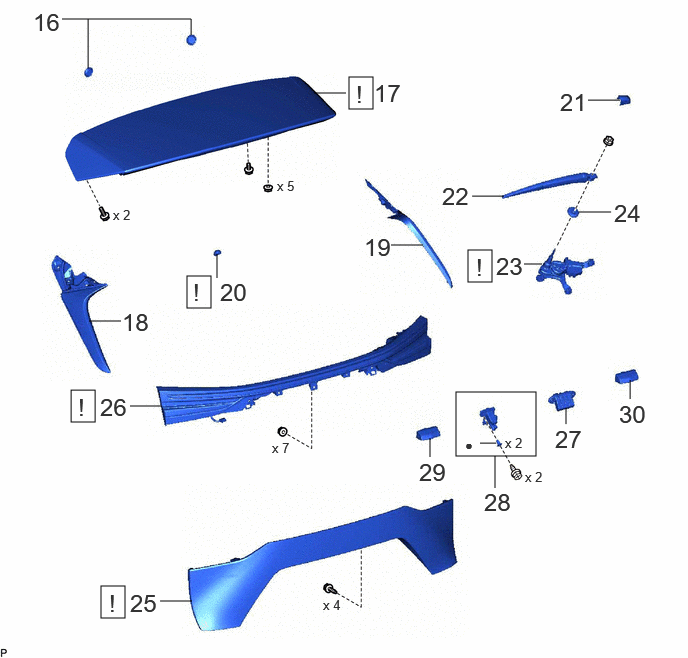

Fig 3: Back Door Disassembly Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
16	HOLE PLUG	-	-	-	-
17	REAR SPOILER ASSEMBLY	-	See step 17	-	-
18	REAR SIDE SPOILER SUB-ASSEMBLY LH	76088B	-	-	-
19	REAR SIDE SPOILER SUB-ASSEMBLY RH	76087B	-	-	-
20	REAR WASHER NOZZLE	85345R	See step 20	-	-
21	REAR WIPER ARM HEAD CAP	85292A	-	-	-
22	REAR WIPER ARM AND BLADE ASSEMBLY	-	-	-	-
23	REAR WIPER MOTOR ASSEMBLY	85110R	See step 23	-	-
24	REAR WIPER MOTOR GROMMET	85143R	-	-	-
25	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY	-	See step 25	-	-
26	REAR LIGHT ASSEMBLY	81580A	See step 26	-	-
27	BACK DOOR OPENER SWITCH ASSEMBLY	84840G	-	-	-
28	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-
29	LICENSE PLATE LIGHT ASSEMBLY LH	81690A	-	-	-
30	LICENSE PLATE LIGHT ASSEMBLY RH	81270D	-	-	-

•

Non-reusable part

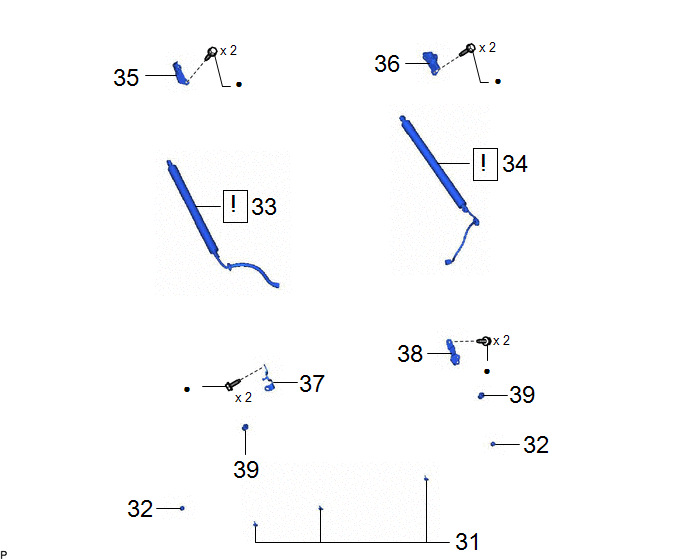

Fig 4: Back Door Disassembly Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
31	BACK DOOR DUST PROOF SEAL	67837N	-	-	-
32	BACK DOOR PANEL CUSHION	67005B	-	-	-
33	POWER BACK DOOR UNIT SET ASSEMBLY LH	68920	See step 33	-	-
34	POWER BACK DOOR UNIT SET ASSEMBLY RH	68910A	See step 34	-	-
35	BACK DOOR DAMPER STAY UPPER BRACKET LH	68946	-	-	-
36	BACK DOOR DAMPER STAY UPPER BRACKET RH	68945	-	-	-
37	BACK DOOR DAMPER STAY LOWER BRACKET LH	68948	-	-	-
38	BACK DOOR DAMPER STAY LOWER BRACKET RH	68947	-	-	-
39	BACK DOOR STAY STOPPER	68984	-	-	-

•

Non-reusable part

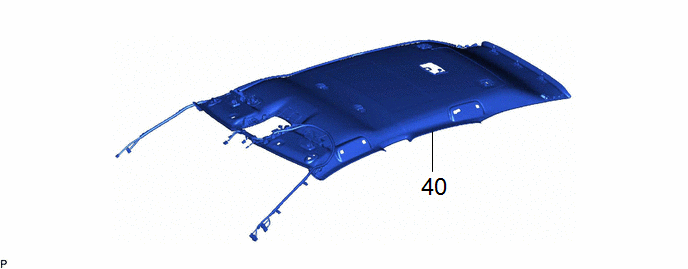

Fig 5: Back Door Disassembly Components (5 Of 6)

Procedure		Part Name Code
40	ROOF HEADLINING ASSEMBLY	-	-	-	-

Fig 6: Back Door Disassembly Components (6 Of 6)

Procedure		Part Name Code
41	NO. 5 ANTENNA CORD SUB-ASSEMBLY	86101R	-	-	-
42	NO. 1 AMPLIFIER ANTENNA ASSEMBLY	86300B	-	-	-
