Removal [11/2021 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH

    Refer to REMOVAL [11/2021 - ]

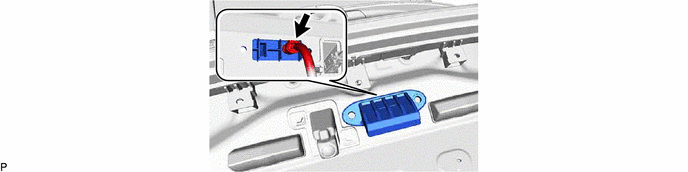

  2. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
    1. GTY1053549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
