Caution / Notice / Hint

COMPONENTS (REMOVAL)

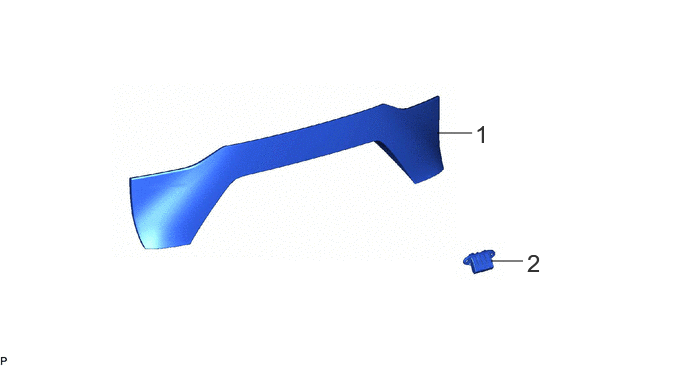

Fig 1: Back Door Opener Switch Removal Components
GTY1052739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 BACK DOOR OUTSIDE GARNISH - - - -
2 BACK DOOR OPENER SWITCH ASSEMBLY 84840G - - -
