Removal [11/2021 - ]: Procedure

  1. REMOVE BACK DOOR UPPER TRIM COVER

    See step  1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    See step  2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure for the LH side.
  4. REMOVE BACK DOOR LOCK COVER
    See step  5
  5. REMOVE BACK DOOR INSIDE HANDLE
    See step  6
  6. REMOVE SWITCH BASE
    See step  7
  7. REMOVE BACK DOOR SERVICE HOLE COVER

    See step  8

  8. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    See step  9

  9. REMOVE MULTIPLEX NETWORK DOOR ECU

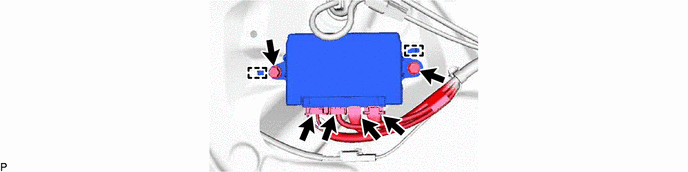

    1. GTY1052570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
