The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during multiplex network door ECU removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Multiplex network door ECU | Reset back door close position | Power Back Door System | Refer to INITIALIZATION [11/2021 - ] |

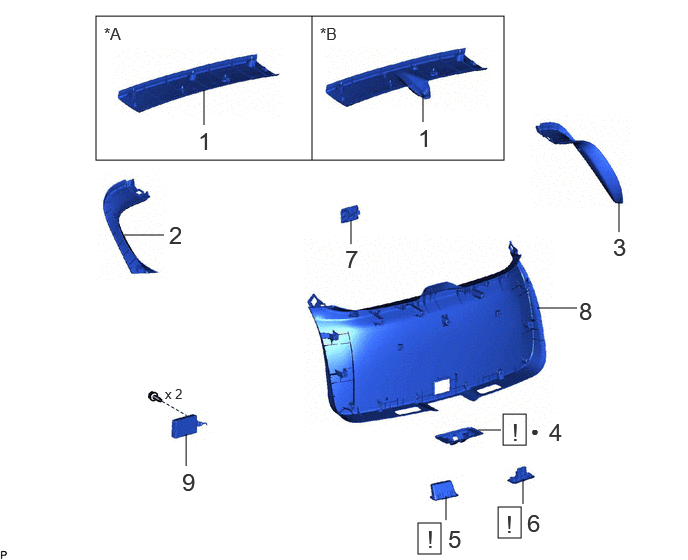

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | BACK DOOR UPPER TRIM COVER | 67765B | - | - | - |
| 2 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 3 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 4 | BACK DOOR LOCK COVER | 69321 | See step 4 | - | - |
| 5 | BACK DOOR INSIDE HANDLE | 69212C | See step 5 | - | - |
| 6 | SWITCH BASE | 84941A | See step 6 | - | - |
| 7 | BACK DOOR SERVICE HOLE COVER | 67847A | - | - | - |
| 8 | BACK DOOR TRIM BOARD ASSEMBLY | 67750 | - | - | - |
| 9 | MULTIPLEX NETWORK DOOR ECU | 89222A | - | - | - |
| *A | w/o Digital Inner Mirror | *B | w/ Digital Inner Mirror |
| • | Non-reusable part | - | - |
