Removal [11/2021 - ]: Procedure

  1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    Refer to PROCEDURE - Step 20 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 20 [03/2024 - ]

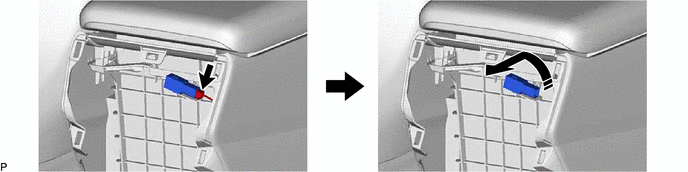

  2. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
    1. GTY1069821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
