Removal [11/2021 - ]: Procedure

  1. PRECAUTION
    Refer to PRECAUTION [11/2021 - ]
  2. REMOVE RADIATOR UPPER AIR GUIDE PLATE

    Refer to PROCEDURE - Step 1

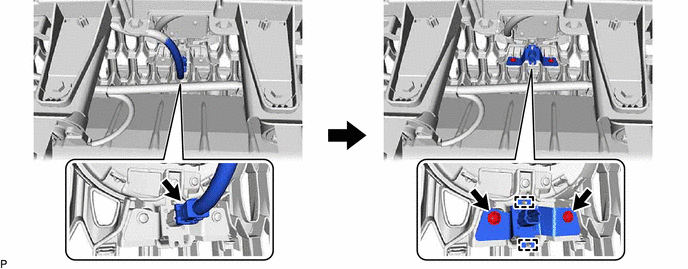

  3. REMOVE FRONT TELEVISION CAMERA ASSEMBLY
    1. GTY1069051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
