Removal [11/2021 - ]: Procedure

Refer to REMOVAL [11/2021 - ]

HINT:

The illustration shown is an example only. The illustration may differ from the actual parts according to the model.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Apply protective tape to the area shown in the illustration.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect each connector.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

   1. Remove the 2 bolts.
   2. Disengage the 8 clips and 2 guides to separate the radio and display receiver assembly with bracket as shown in the illustration.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disengage each clamp.
   2. Disconnect each connector to remove the radio and display receiver assembly with bracket.

Refer to PROCEDURE - Step 2

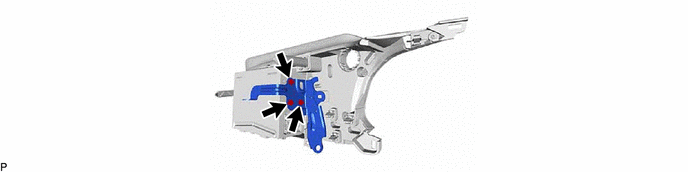

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

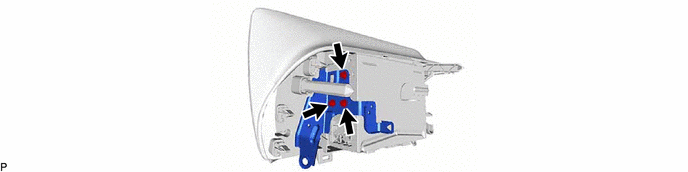

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
