Removal [11/2021 - ]: Procedure

  1. DISCONNECT AC CHARGER INLET CABLE

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE BATTERY CHARGE PORT LID SUB-ASSEMBLY
    Refer to PROCEDURE - Step 3
  3. REMOVE SPOT LIGHT ASSEMBLY

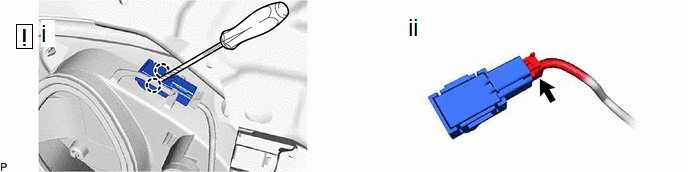

    1. GTY1072465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws
      2. Disconnect the connector to remove the spot light assembly.
  4. REMOVE SPOT LIGHT WIRE

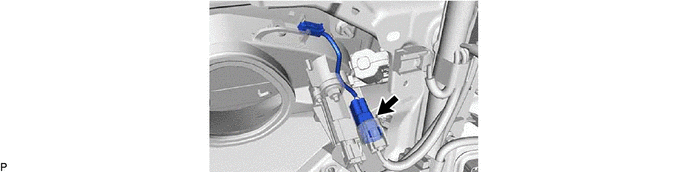

    1. GTY1072916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
