Parts Location [11/2021 - ]: Illustration

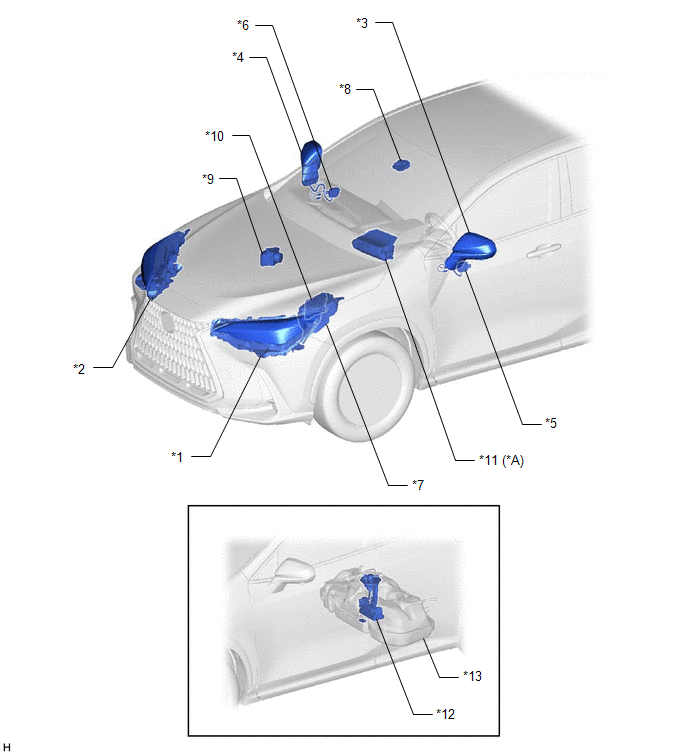

| *A | w/ Headup Display | - | - |
| *1 | HEADLIGHT ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH (w/ Automatic Headlight Beam Level Control System) - HEADLIGHT UNIT ASSEMBLY LH (w/ Automatic Headlight Beam Level Control System) - HEADLIGHT TURN SIGNAL LED UNIT LH (w/ Automatic Headlight Beam Level Control System (for Bulb Type Turn Signal Light)) - FRONT TURN SIGNAL LIGHT SOCKET AND WIRE LH (w/ Automatic Headlight Beam Level Control System (for Bulb Type Turn Signal Light)) - FRONT TURN SIGNAL LIGHT SOCKET LH (w/o Automatic Headlight Beam Level Control System) - FRONT TURN SIGNAL LIGHT BULB LH (for Bulb Type Turn Signal Light) |
*2 | HEADLIGHT ASSEMBLY RH - HEADLIGHT ECU SUB-ASSEMBLY RH (w/ Automatic Headlight Beam Level Control System) - HEADLIGHT UNIT ASSEMBLY RH (w/ Automatic Headlight Beam Level Control System) - HEADLIGHT TURN SIGNAL LED UNIT RH (w/ Automatic Headlight Beam Level Control System (for LED Type Turn Signal Light)) - FRONT TURN SIGNAL LIGHT SOCKET AND WIRE RH (w/ Automatic Headlight Beam Level Control System (for Bulb Type Turn Signal Light)) - FRONT TURN SIGNAL LIGHT SOCKET RH (w/o Automatic Headlight Beam Level Control System) - FRONT TURN SIGNAL LIGHT BULB RH (for Bulb Type Turn Signal Light) |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR RETRACTOR LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*4 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR RETRACTOR RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *6 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *7 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - STRG HTR FUSE |
*8 | FORWARD RECOGNITION CAMERA |
| *9 | BRAKE ACTUATOR ASSEMBLY - NO. 2 SKID CONTROL ECU |
*10 | ECM |
| *11 | METER MIRROR SUB-ASSEMBLY | *12 | FUEL TANK SUB-ASSEMBLY |
| *13 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY |
- | - |

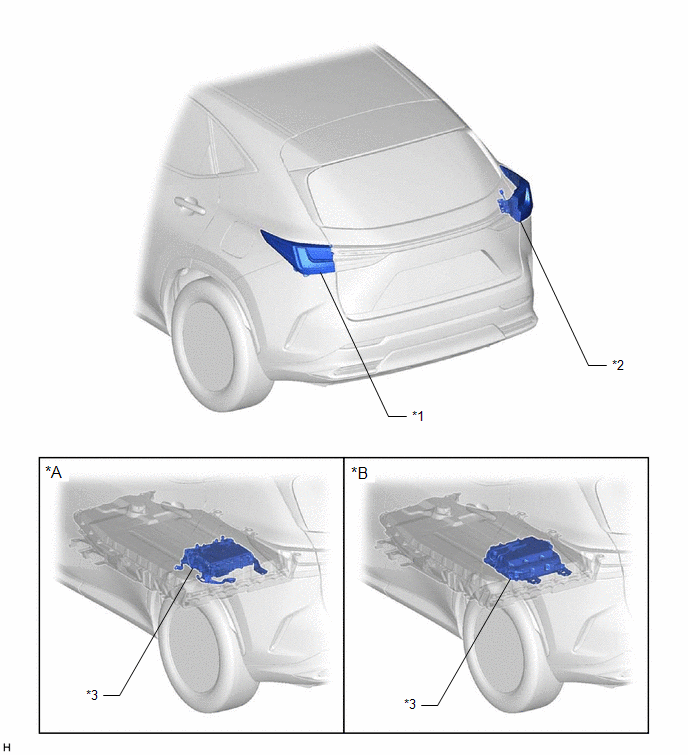

| *A | for 3.3 kW Type | *B | for 6.6 kW Type |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT SOCKET AND WIRE LH - REAR COMBINATION LIGHT LENS AND BODY LH |
*2 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT SOCKET AND WIRE RH - REAR COMBINATION LIGHT LENS AND BODY RH |
| *3 | ELECTRIC VEHICLE CHARGER ASSEMBLY | - | - |

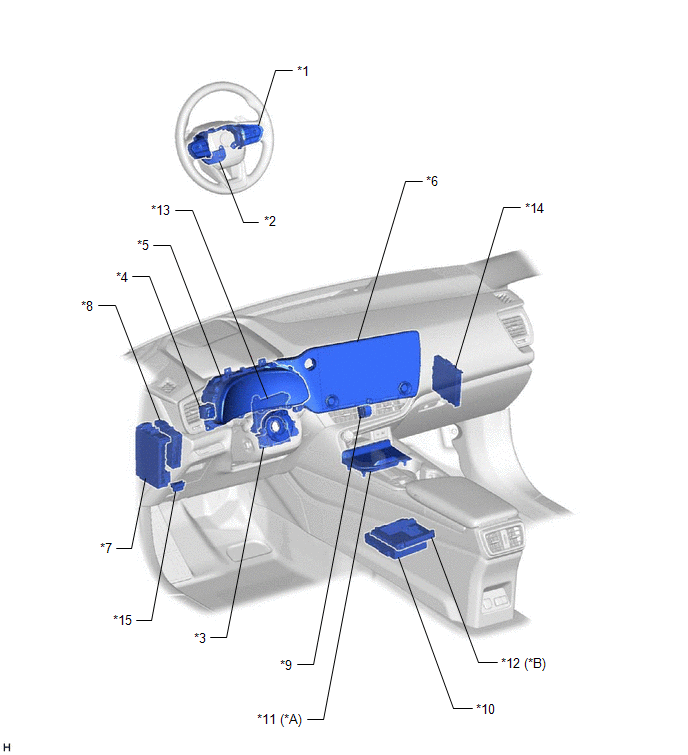

| *A | w/ Wireless Charging System | *B | w/ Panoramic View Monitor System |
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | MULTIPLEX NETWORK STEERING ECU |
| *3 | SPIRAL CABLE SUB-ASSEMBLY | *4 | TRIP SWITCH - ODO/TRIP SWITCH - LIGHT CONTROL RHEOSTAT UP SWITCH - LIGHT CONTROL RHEOSTAT DOWN SWITCH |
| *5 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY |
*6 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *7 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-DCC NO. 3 FUSE - METER-IGR FUSE - ECU-IGR NO. 3 FUSE (w/ Headup Display) - HAZ FUSE - +BA NO. 1 FUSE (w/ Headup Display or Touch Tracer Operation) |
*8 | HYBRID VEHICLE CONTROL ECU |
| *9 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *10 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *11 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY | *12 | PARKING ASSIST ECU |
| *13 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *14 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *15 | DLC3 | - | - |
