Removal [11/2021 - ]: Procedure

  1. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 21

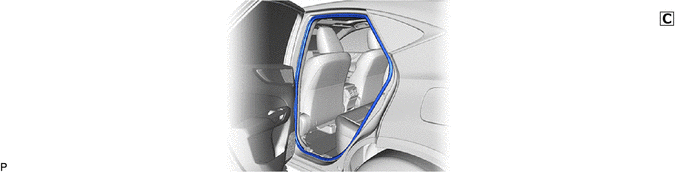

  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
    1. GTY1073230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
