Removal [11/2021 - ]: Procedure

  1. REMOVE DOOR SCUFF PLATE ASSEMBLY

    Refer to PROCEDURE - Step 13

  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

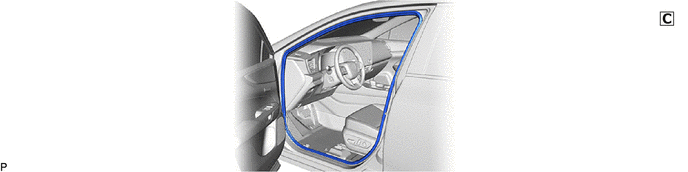

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP
    1. GTY1073227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
