Removal [12/2021 - ]: Procedure

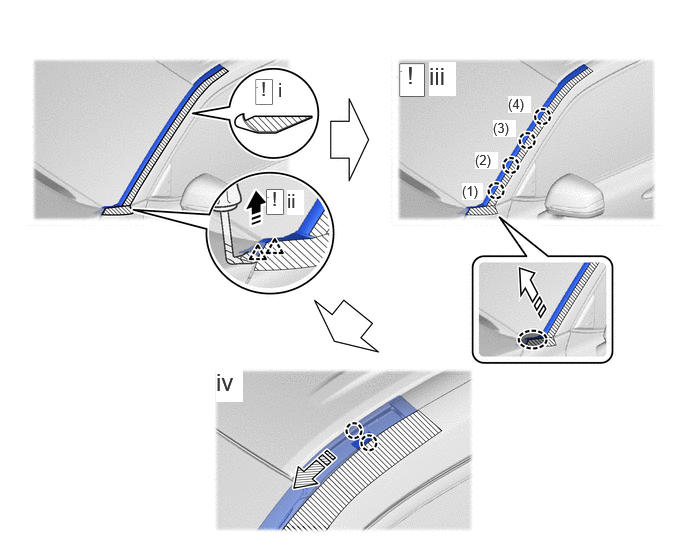

1. Fig 1: Windshield Outside Moulding LH Detachment Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hand Here		Remove in this Direction (1)
   	Remove in this Direction (2)		Remove in this Direction (3)

   1. Put protective tape around the windshield outside moulding LH.
   2. Using a clip remover with its tip wrapped with protective tape, detach the clip as shown in the illustration.
   3. Place your hand at the position shown in the illustration and detach the claw in the order shown in the illustration.
   4. Pull the windshield outside moulding LH toward the front of the vehicle and detach the claw and remove the windshield outside moulding LH.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the following procedure only when replacement of the No. 3 windshield outside moulding clip is necessary.

Refer to REMOVAL [12/2021 - ]

HINT:

Perform the following procedure only when replacement of the No. 3 windshield outside moulding clip is necessary.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Tape

   *b

   Flange

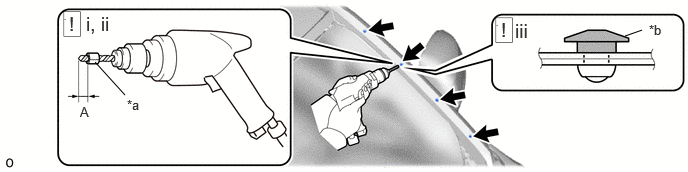

   1. Insert a 4.0 mm (0.157 in.) drill bit into a drill.
   2. Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

      Standard Measurement

      Area	Measurement
      A	5.0 mm (0.197 in.)

      NOTE:

      Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

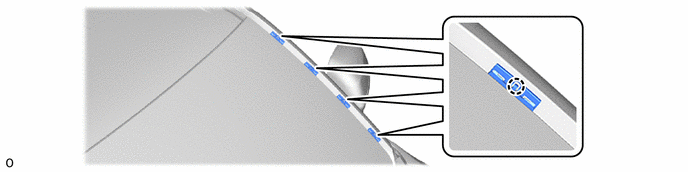

   3. Lightly press the drill against the No. 3 windshield outside moulding clips to drill off the No. 3 windshield outside moulding clip flanges, and remove the 4 No. 3 windshield outside moulding clips.
      WARNING:

      Be careful of the drilled No. 3 windshield outside moulding clips, as they may be hot.

      NOTE:

      • Pressing the drill too firmly will cause the No. 3 windshield outside moulding clip to turn and result in the No. 3 windshield outside moulding clip not being drilled through.
      • Prying the No. 3 windshield outside moulding clips with the drill may damage the No. 3 windshield outside moulding clip installation holes or drill bit.
