Caution / Notice / Hint
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure described below is for the LH side.

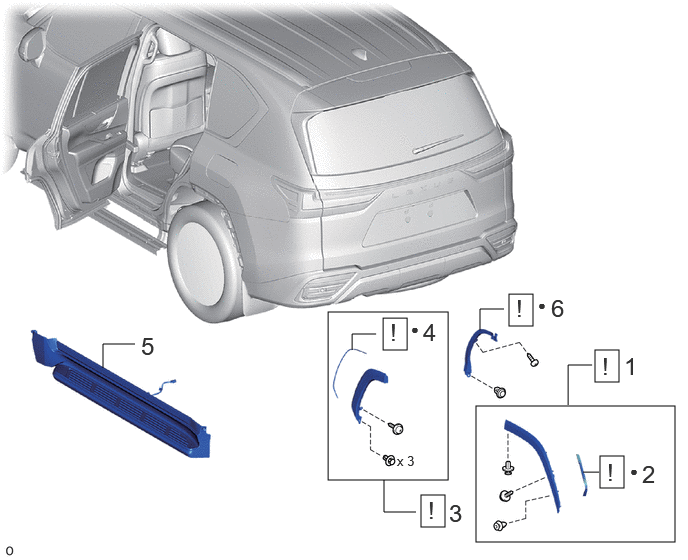

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH | 75606B | See step 1 | - | - |
| 2 | QUARTER OUTSIDE MOULDING PAD | 75695 | See step 2 | - | - |
| 3 | REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH | 75078 | See step 3 | - | - |
| 4 | BODY OUTSIDE MOULDING PAD | 75696A | See step 4 | - | - |
| 5 | STEP PLATE COVER | - | - | - | - |
| 6 | QUARTER PANEL WHEEL OPENING MOULDING LH | 75874 | See step 6 | - | - |
| • | Non-reusable part | - | - |
