Removal [12/2021 - ]: Procedure

  1. REMOVE STEP PLATE LH

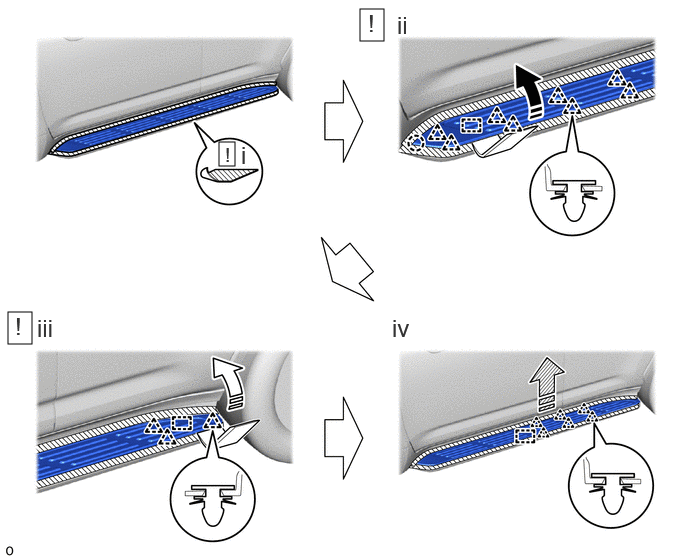

    1. GTY1054953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) - -
      1. Put protective tape around the step plate LH.
      2. Using moulding remover D, detach the vehicle front side clip, claw and guide.
      3. Using moulding remover D, detach the vehicle rear side clip and guide.
      4. Detach the clip and guide and remove the step plate LH.
  2. REMOVE STEP SUB-ASSEMBLY LH

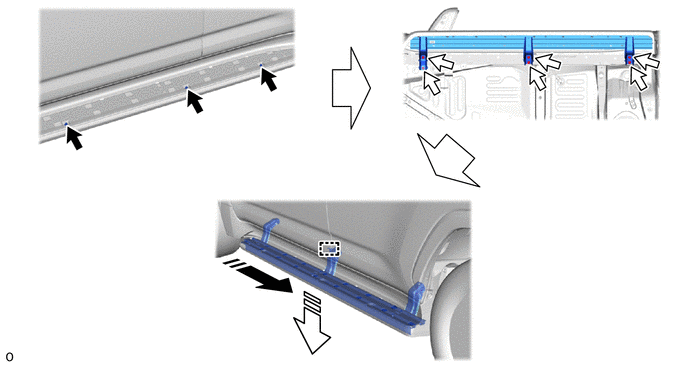

    1. GTY1054204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Screw Bolt
