Reassembly [12/2021 - ]: Procedure

  1. INSTALL SCREW GROMMET
  2. INSTALL STEP COVER PROTECTOR LH
    NOTE:

    When installing the step cover protector LH, heat the No. 3 side step bracket LH or No. 1 side step stay sub-assembly LH and step cover protector LH using a heat light.

    Standard Value

    Part Temperature
    No. 3 Side Step Bracket LH or No. 1 Side Step Stay Sub-assembly LH 40 to 60°C (104 to 140°F)
    Step Cover Protector LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the No. 3 side step bracket LH or No. 1 side step stay sub-assembly LH and step cover protector LH excessively.

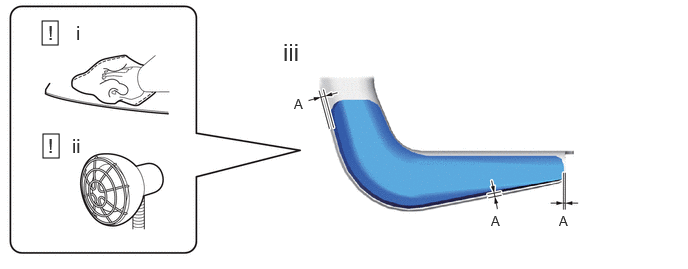

    1. GTY1057613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Measurement

      Area Measurement Area Measurement
      A Reference value 1.0 mm - -
      1. Clean the surface of the No. 3 side step bracket LH or No. 1 side step stay sub-assembly LH.

        1. When reusing the No. 3 side step bracket LH or No. 1 side step stay sub-assembly LH, remove remaining double-sided tape from the No. 3 side step bracket LH or No. 1 side step stay sub-assembly LH.

        2. Using a heat light, heat the No. 3 side step bracket LH or No. 1 side step stay sub-assembly LH surface.

        3. Wipe off any tape adhesive residue with cleaner.

        NOTE:
        • Installing the step cover protector LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
        • Clean a new No. 3 side step bracket LH or No. 1 side step stay sub-assembly LH.
      2. Using a heat light, heat the No. 3 side step bracket LH or No. 1 side step stay sub-assembly LH and a new step cover protector LH.
      3. Install the step cover protector LH as shown in the illustration.

        HINT:

        Apply pressure so that it does not lift up from the No. 3 side step bracket LH or No. 1 side step stay sub-assembly LH.

    2. Use the same procedure for the both step cover protectors LH.
  3. INSTALL NO. 3 SIDE STEP BRACKET LH

    Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

  4. INSTALL NO. 1 SIDE STEP STAY SUB-ASSEMBLY LH

    Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

  5. INSTALL NO. 1 SIDE STEP BRACKET LH

    Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)
