Removal [12/2021 - ]: Procedure

  1. REMOVE ROOF RACK ASSEMBLY LH

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE ROOF DRIP SIDE FINISH MOULDING LH

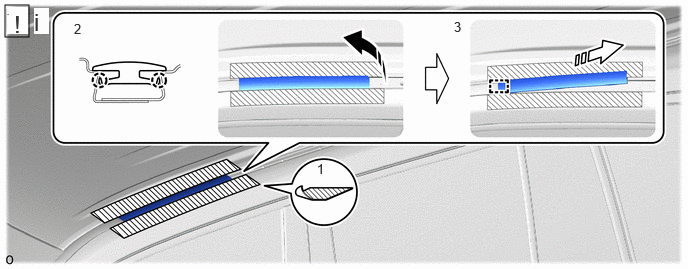

    1. GTY1082445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Remove the roof drip side finish moulding LH by the following procedure.

        1. Put protective tape around the roof drip side finish moulding LH.

        2. Lift up the rear end of the roof drip side finish moulding LH and detach the claw as shown in the illustration.

        3. Pull the roof drip side finish moulding LH backward and detach the guide and remove the roof drip side finish moulding LH as shown in the illustration.

  3. REMOVE REAR ROOF DRIP SIDE FINISH MOULDING LH

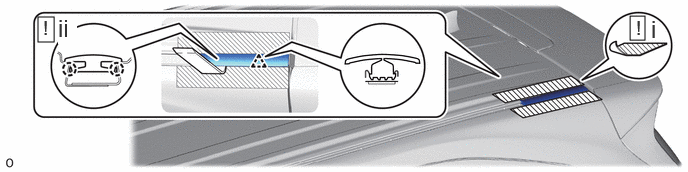

    1. GTY1059307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the rear roof drip side finish moulding LH.
      2. Using moulding remover D, detach the claw and clip and remove the rear roof drip side finish moulding LH.
        NOTE:
        • Do not remove the roof drip side finish moulding clip.
        • If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
