Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the roof rack assembly LH removal/installation are shown below.

HINT:

When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	Refer to PRECAUTION [12/2021 - 10/2023] , or refer to PRECAUTION [10/2023 - ]
Lighting system (EXT) Cornering lights	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2021 - ]
Pre-collision system
Lane tracing assist system
Adaptive high beam system

*: w/ Stop and start system

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [12/2021 - ]
Air conditioning system	After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

Use the same procedure for the RH and LH sides.
Use the same procedure described for the LH side.

COMPONENTS (REMOVAL)

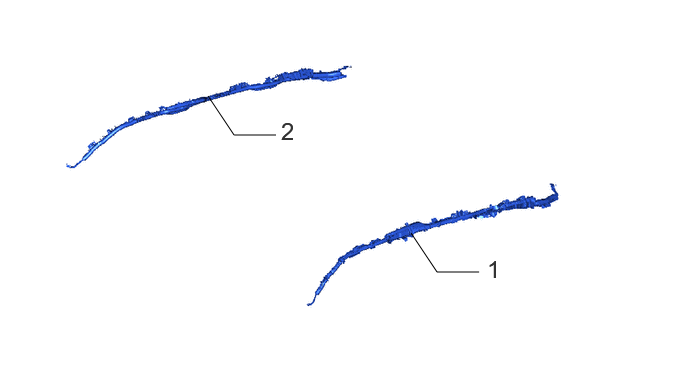

Fig 1: Roof Carrier Removal Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	CURTAIN SHIELD AIRBAG ASSEMBLY LH	62180A	-	-	-
2	CURTAIN SHIELD AIRBAG ASSEMBLY RH	62170A	-	-	-

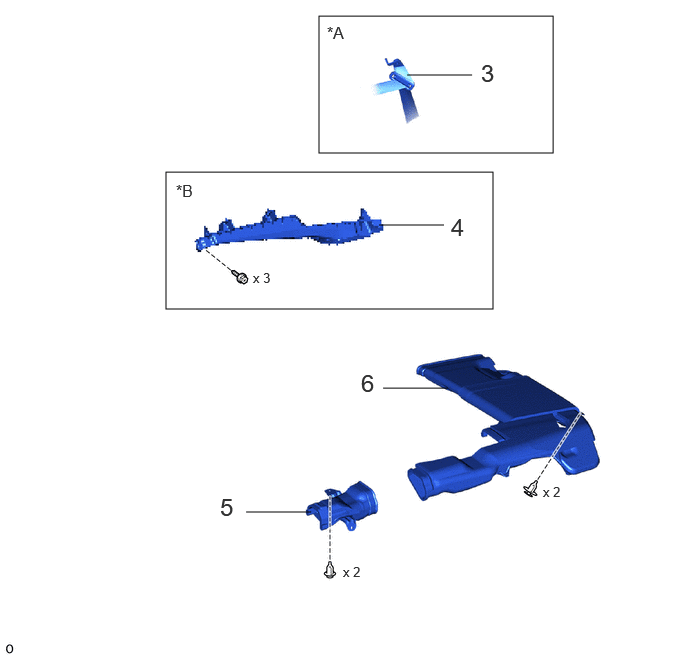

Fig 2: Roof Carrier Removal Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
3	REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH	73360C	-	-	-
4	NO. 1 ROOF SIDE INNER GARNISH SPACER RH	62495A	-	-	-
5	REAR NO. 4 ROOF AIR DUCT	88566U	-	-	-
6	REAR NO. 3 ROOF AIR DUCT	88566T	-	-	-

for 4-Passenger, RH Side

w/ Spacer, for RH Side

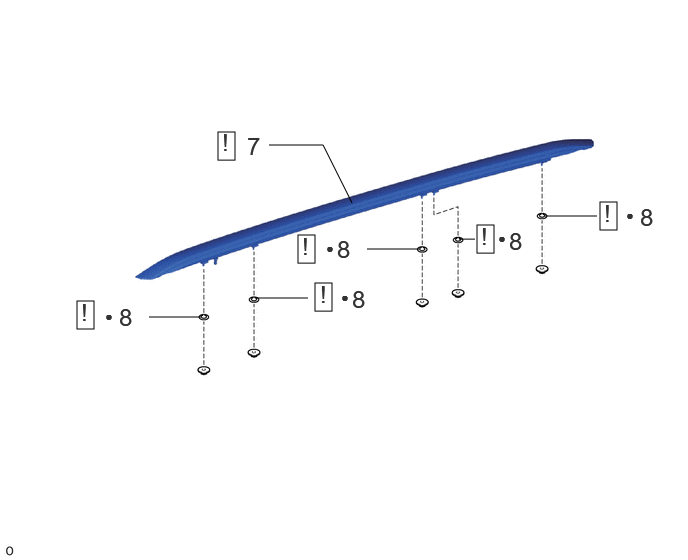

Fig 3: Roof Carrier Removal Components (3 Of 3)

Procedure		Part Name Code
7	ROOF RACK ASSEMBLY LH	-	See step 7	-	-
8	NO. 2 ROOF CARRIER SEAL	63437A	See step 8	-	-

•

Non-reusable part
