Removal [12/2021 - ]: Procedure

  1. REMOVE FRONT FENDER MUDGUARD LH

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH

    Refer to REMOVAL [12/2021 - ]

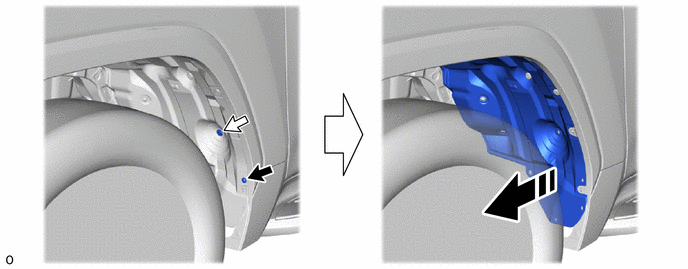

  3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
    1. GTY1055019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Screw
      Clip - -
  4. REMOVE STEP PANEL LH

    Refer to REMOVAL [12/2021 - ]

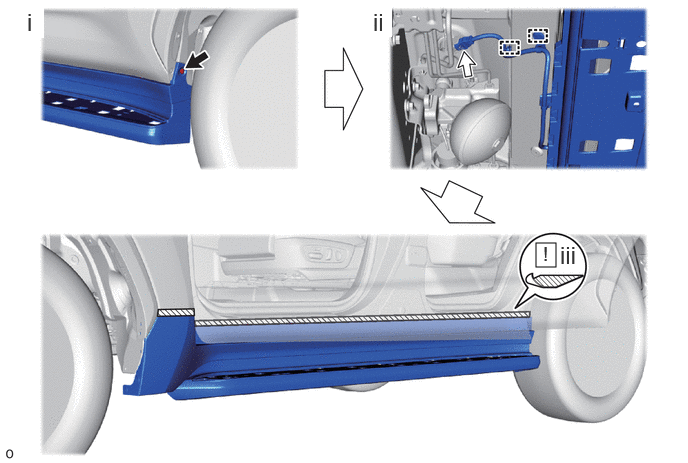

  5. REMOVE STEP PLATE COVER SUB-ASSEMBLY LH
    1. GTY1055334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Connector
      1. Remove the screw.
      2. Disconnect the connector and detach the clamp.
      3. Put protective tape around the step plate cover sub-assembly LH.

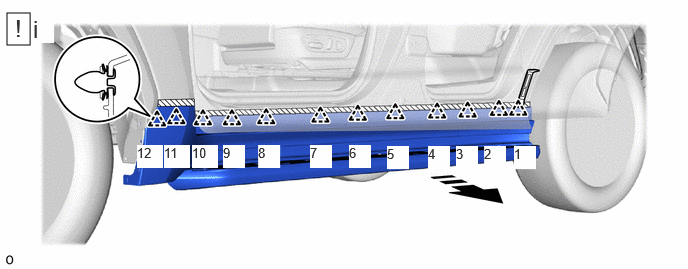

    2. Fig 1: Step Plate Cover Sub-Assembly LH Detachment Sequence
      GTY1055457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using moulding remover A, detach the clip in the order shown in the illustration and remove the step plate cover sub-assembly LH.
