Disassembly [12/2021 - ]: Procedure

  1. REMOVE GROMMET SCREW
    1. GTY1054658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE STEP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

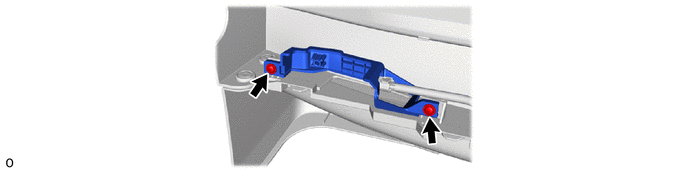

  3. REMOVE STEP COVER REINFORCEMENT LH
    1. GTY1054852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE STEP REAR FLOOR WIRE LH
    1. GTY1054848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

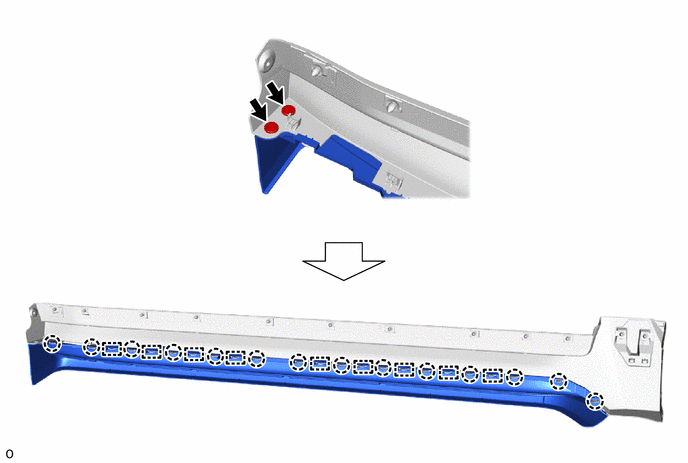

  5. REMOVE REAR SIDE DOOR STEP PLATE COVER LH
    1. GTY1054846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
