Caution / Notice / Hint

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure listed below is for the LH side.

COMPONENTS (DISASSEMBLY)

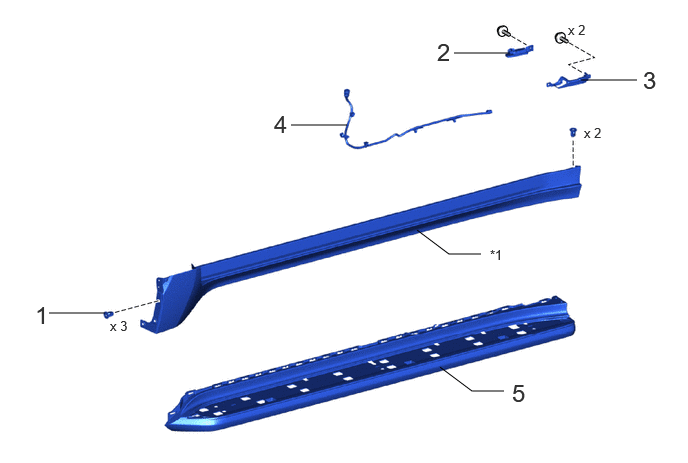

Fig 1: Rocker Panel Moulding Disassembly Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	GROMMET SCREW	-	-	-	-
2	STEP LIGHT ASSEMBLY	81380D	-	-	-
3	STEP COVER REINFORCEMENT LH	51788A	-	-	-
4	STEP REAR FLOOR WIRE LH	82158B	-	-	-
5	REAR SIDE DOOR STEP PLATE COVER LH	51759A	-	-	-
