Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear door front window frame moulding LH, rear door rear window frame moulding LH and rear door upper window frame moulding LH removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Rear door glass sub-assembly LH Rear door glass sub-assembly RH Rear door glass run LH Rear door glass run RH	Initialize power window control system	Auto up and down function Jam protection function Catch protection function Remote control function Key-linked function Wireless transmitter-linked function Key-off operation function Window open warning function	Refer to INITIALIZATION [12/2021 - ]

HINT:

When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	Refer to PRECAUTION [12/2021 - 10/2023] , or refer to PRECAUTION [10/2023 - ]
Lighting system (EXT) Cornering lights	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2021 - ]
Pre-collision system
Lane tracing assist system
Adaptive high beam system

*: w/ Stop and start system

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [12/2021 - ]
Air conditioning system	After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

Use the same procedure for the RH and LH sides.
Use the same procedure described for the LH side.

COMPONENTS (REMOVAL)

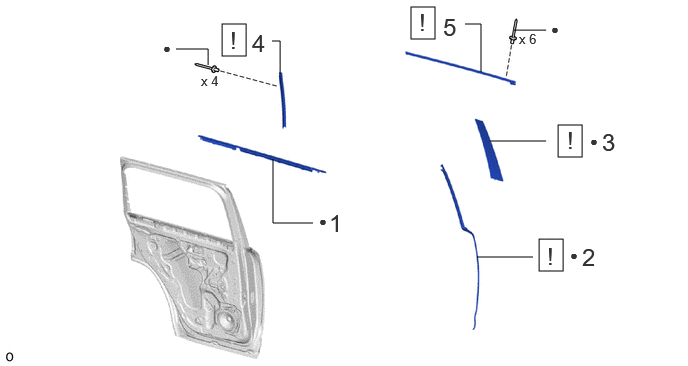

Fig 1: Rear Door Window Frame Moulding Removal Components

Procedure		Part Name Code
1	REAR DOOR BELT MOULDING ASSEMBLY LH	75740	-	-	-
2	REAR NO. 4 DOOR WEATHERSTRIP LH	67898G	See step 2	-	-
3	REAR DOOR FRONT WINDOW FRAME MOULDING LH	75762A	See step 3	-	-
4	REAR DOOR REAR WINDOW FRAME MOULDING LH	75766A	See step 4	-	-
5	REAR DOOR UPPER WINDOW FRAME MOULDING LH	75764A	See step 5	-	-

•

Non-reusable part
