The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear door belt moulding assembly LH removal/installation are shown below.

HINT:

• When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
  • Learning completes when vehicle is driven

    Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
    Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	Refer to PRECAUTION [12/2021 - 10/2023] , or refer to PRECAUTION [10/2023 - ]
    Lighting system (EXT) Cornering lights	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2021 - ]
    Pre-collision system
    Lane tracing assist system
    Adaptive high beam system

    *: w/ Stop and start system

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
    Power back door system	Fully close the back door by hand. HINT:  Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [12/2021 - ]
    Air conditioning system	After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

• Use the same procedure for the RH and LH sides.
• Use the same procedure described for the LH side.

COMPONENTS (REMOVAL)

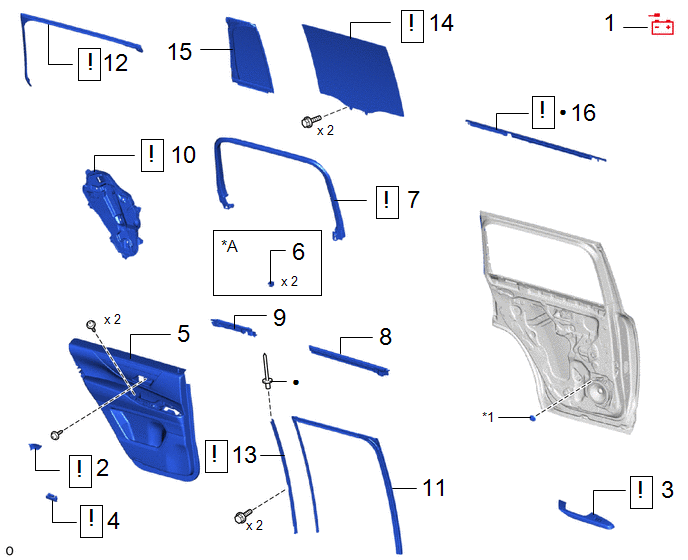

Fig 1: Rear Door Belt Moulding Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL	-	-	-	-
2	NO. 2 DOOR INSIDE HANDLE BEZEL LH	69298C	See step  2	-	-
3	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL	-	See step  3	-	-
4	COURTESY LIGHT ASSEMBLY	81230	See step  4	-	-
5	REAR DOOR TRIM BOARD SUB-ASSEMBLY LH	67604	-	-	-
6	SUNSHADE HOOK	65988	-	-	-
7	REAR DOOR FRAME GARNISH LH	67674A	See step  7	-	-
8	REAR DOOR GLASS INNER WEATHERSTRIP LH	68174A	-	-	-
9	REAR DOOR REAR BELT SEAL LH	68199	-	-	-
10	REAR DOOR SERVICE HOLE COVER LH	67842E	See step  10	-	-
11	REAR DOOR GLASS RUN LH	68152C	-	-	-
12	NO. 2 REAR DOOR WEATHERSTRIP LH	67888F	See step  12	-	-
13	REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH	67408E	See step  13	-	-
14	REAR DOOR GLASS SUB-ASSEMBLY LH	68104	See step  14	-	-
15	REAR DOOR QUARTER WINDOW GLASS LH	68124C	-	-	-
16	REAR DOOR BELT MOULDING ASSEMBLY LH	75740	See step  16	-	-
