Caution / Notice / Hint

COMPONENTS (REMOVAL)

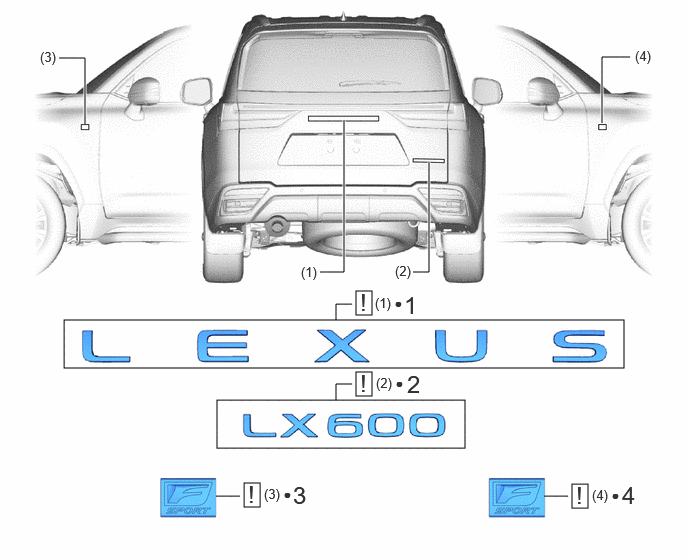

Fig 1: Name Plate Removal Components

GTY1058048

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BACK DOOR NAME PLATE	75441C	See step 1	-	-
2	REAR BODY NO. 3 NAME PLATE	75473B	See step 2	-	-
3	FRONT FENDER NO. 2 NAME PLATE	75362	See step 3	-	-
4	FRONT FENDER NO. 1 NAME PLATE	75361A	See step 4	-	-

•

Non-reusable part

-

-
