Removal [12/2021 - ]: Procedure

  1. REMOVE QUARTER PANEL REAR MUDGUARD LH

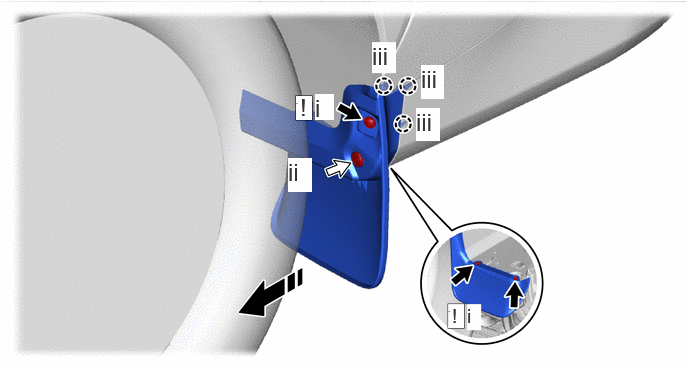

    1. GTY1082455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Screw
      Clip - -
      1. Using a 4 mm hexagon socket wrench, remove the 3 screws.
      2. Remove the clip.
      3. Detach the claw and remove the quarter panel rear mudguard LH as shown in the illustration.
