The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the radiator shutter assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system Multi-terrain monitor system	Refer to CALIBRATION [12/2021 - ]
Front television camera assembly, front bumper assembly or radiator grille Rear television camera assembly Side television camera assembly LH or outer rear view mirror assembly LH Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system Multi-terrain monitor system	Refer to CALIBRATION [12/2021 - ]
Radiator shutter assembly	Change grille shutter control modes and/or perform initialization	Grille shutter system	w/ Canister Pump Module: Refer to INITIALIZATION [12/2021 - ] w/o Canister Pump Module: Refer to INITIALIZATION [12/2021 - ]

COMPONENTS (REMOVAL)

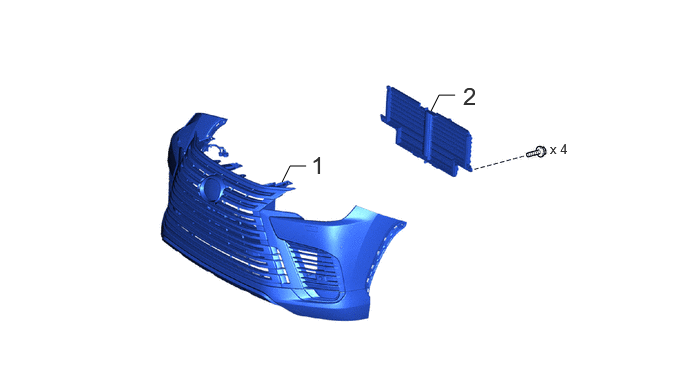

Fig 1: Grille Shutter Removal Components

Procedure		Part Name Code
1	FRONT BUMPER ASSEMBLY	-	-	-	-
2	RADIATOR SHUTTER ASSEMBLY	53180E	-	-	-
