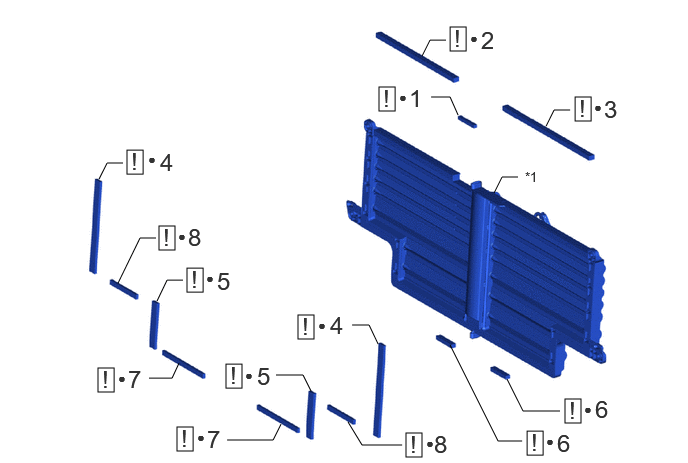

COMPONENTS (REASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 7 RADIATOR GRILLE SEAL | 53159G | See step 1 | - | - |
| 2 | NO. 1 RADIATOR GRILLE SEAL | 53155D | See step 2 | - | - |
| 3 | NO. 2 RADIATOR GRILLE SEAL | 53156E | See step 3 | - | - |
| 4 | NO. 3 RADIATOR GRILLE SEAL | 53157A | See step 4 | - | - |
| 5 | NO. 5 RADIATOR GRILLE SEAL | 53159K | See step 5 | - | - |
| 6 | NO. 8 RADIATOR GRILLE SEAL | 53157D | See step 6 | - | - |
| 7 | NO. 6 RADIATOR GRILLE SEAL | 53159F | See step 7 | - | - |
| 8 | NO. 4 RADIATOR GRILLE SEAL | 53158F | See step 8 | - | - |
| *1 | RADIATOR SHUTTER | - | - |
| • | Non-reusable part | - | - |
