Disassembly [12/2021 - ]: Procedure

  1. REMOVE NO. 4 RADIATOR GRILLE SEAL
    NOTE:

    When removing the No. 4 radiator grille seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 4 radiator grille seal using a heat light.

    Standard Value

    Part Temperature
    No. 4 Radiator Grille Seal 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the No. 4 radiator grille seal excessively.

    1. GTY1058161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 4 radiator grille seal using a heat light.
      2. Remove the 2 No. 4 radiator grille seals.
  2. REMOVE NO. 6 RADIATOR GRILLE SEAL
    NOTE:

    When removing the No. 6 radiator grille seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 6 radiator grille seal using a heat light.

    Standard Value

    Part Temperature
    No. 6 Radiator Grille Seal 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the No. 6 radiator grille seal excessively.

    1. GTY1058139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 6 radiator grille seal using a heat light.
      2. Remove the 2 No. 6 radiator grille seals.
  3. REMOVE NO. 8 RADIATOR GRILLE SEAL
    NOTE:

    When removing the No. 8 radiator grille seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 8 radiator grille seal using a heat light.

    Standard Value

    Part Temperature
    No. 8 Radiator Grille Seal 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the No. 8 radiator grille seal excessively.

    1. GTY1057600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 8 radiator grille seal using a heat light.
      2. Remove the 2 No. 8 radiator grille seals.
  4. REMOVE NO. 5 RADIATOR GRILLE SEAL
    NOTE:

    When removing the No. 5 radiator grille seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 5 radiator grille seal using a heat light.

    Standard Value

    Part Temperature
    No. 5 Radiator Grille Seal 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the No. 5 radiator grille seal excessively.

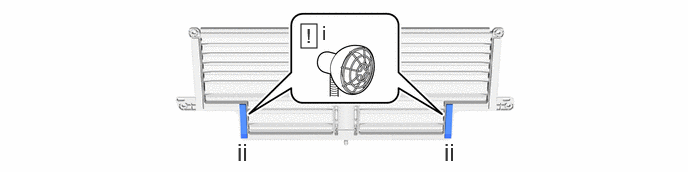

    1. GTY1057965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 5 radiator grille seal using a heat light.
      2. Remove the 2 No. 5 radiator grille seals.
  5. REMOVE NO. 3 RADIATOR GRILLE SEAL
    NOTE:

    When removing the No. 3 radiator grille seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 3 radiator grille seal using a heat light.

    Standard Value

    Part Temperature
    No. 3 Radiator Grille Seal 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the No. 3 radiator grille seal excessively.

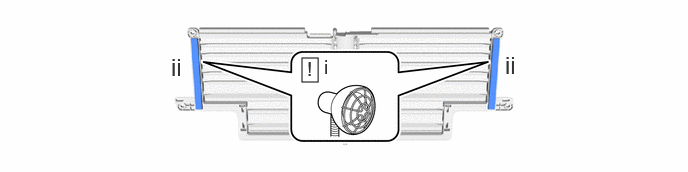

    1. GTY1058325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 3 radiator grille seal using a heat light.
      2. Remove the 2 No. 3 radiator grille seals.
  6. REMOVE NO. 2 RADIATOR GRILLE SEAL
    NOTE:

    When removing the No. 2 radiator grille seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 2 radiator grille seal using a heat light.

    Standard Value

    Part Temperature
    No. 2 Radiator Grille Seal 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the No. 2 radiator grille seal excessively.

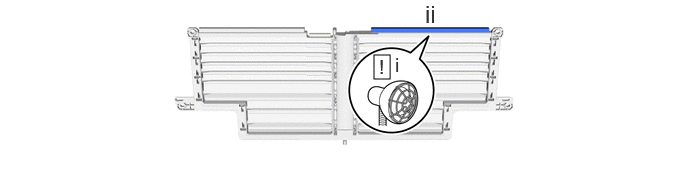

    1. GTY1058462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 2 radiator grille seal using a heat light.
      2. Remove the No. 2 radiator grille seal.
  7. REMOVE NO. 1 RADIATOR GRILLE SEAL
    NOTE:

    When removing the No. 1 radiator grille seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 1 radiator grille seal using a heat light.

    Standard Value

    Part Temperature
    No. 1 Radiator Grille Seal 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the No. 1 radiator grille seal excessively.

    1. GTY1057880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 1 radiator grille seal using a heat light.
      2. Remove the No. 1 radiator grille seal.
  8. REMOVE NO. 7 RADIATOR GRILLE SEAL
    NOTE:

    When removing the No. 7 radiator grille seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 7 radiator grille seal using a heat light.

    Standard Value

    Part Temperature
    No. 7 Radiator Grille Seal 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the No. 7 radiator grille seal excessively.

    1. GTY1057203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 7 radiator grille seal using a heat light.
      2. Remove the No. 7 radiator grille seal.
