Reassembly [12/2021 - ]: Procedure

INSTALL FRONT SIDE NO. 2 PANEL PROTECTOR LH
INSTALL FRONT FENDER SUB-ASSEMBLY LH
INSTALL WINDSHIELD OUTSIDE MOULDING LH
Refer to INSTALLATION [12/2021 - ]
INSTALL FRONT FENDER SIDE PANEL PROTECTOR LH

INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

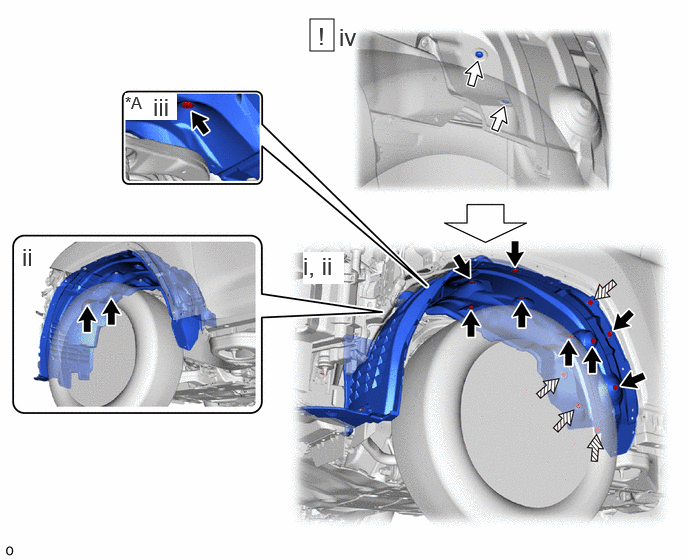

GTY1055676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for RH Side	-	-
	Clip		Screw
	Grommet	-	-

Install the front fender splash shield sub-assembly LH.
Install the 10 clips and attach the 4 grommets.
for RH Side:
Install the clip.
Using a 4 mm hexagon socket wrench, install the 2 screws.

INSTALL STEP PLATE COVER SUB-ASSEMBLY LH
Refer to INSTALLATION [12/2021 - ]
INSTALL FRONT BUMPER SIDE SUPPORT LH
Refer to PROCEDURE - Step 40
INSTALL HEADLIGHT ASSEMBLY LH
Refer to INSTALLATION [12/2021 - ]
