Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front fender sub-assembly LH removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system Multi-terrain monitor system	Refer to CALIBRATION [12/2021 - ]
Front television camera assembly, front bumper assembly or radiator grille Rear television camera assembly Side television camera assembly LH or outer rear view mirror assembly LH Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system Multi-terrain monitor system	Refer to CALIBRATION [12/2021 - ]

HINT:

Use the same procedure for the RH and LH sides.
The procedure described below is for the LH side.

COMPONENTS (DISASSEMBLY)

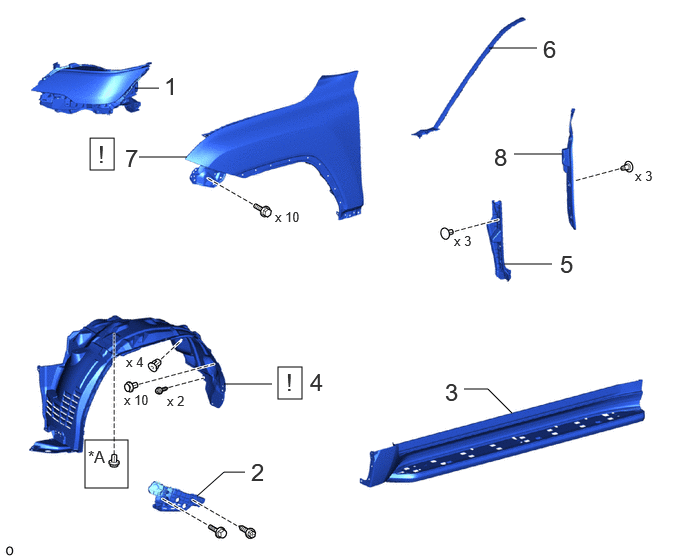

Fig 1: Front Fender Disassembly Components

Procedure		Part Name Code
1	HEADLIGHT ASSEMBLY LH	-	-	-	-
2	FRONT BUMPER SIDE SUPPORT LH	52116A	-	-	-
3	STEP PLATE COVER SUB-ASSEMBLY LH	-	-	-	-
4	FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH	53806	See step 4	-	-
5	FRONT FENDER SIDE PANEL PROTECTOR LH	53828J	-	-	-
6	WINDSHIELD OUTSIDE MOULDING LH	75534	-	-	-
7	FRONT FENDER SUB-ASSEMBLY LH	53802	See step 7	-	-
8	FRONT SIDE NO. 2 PANEL PROTECTOR LH	53824B	-	-	-

for RH Side
